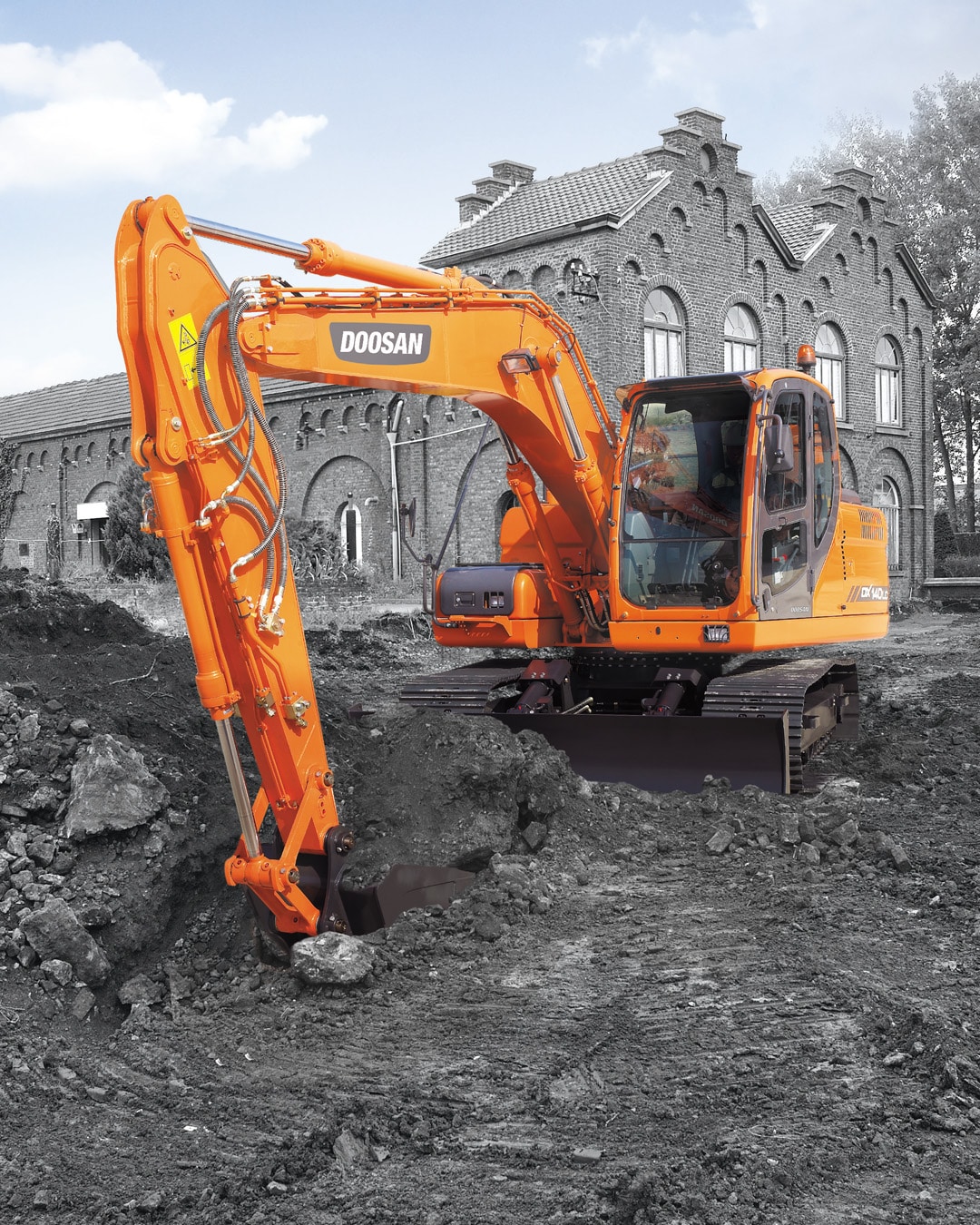

The Develon DX140LC Large Excavator combines compact efficiency with robust performance, making it perfect for civil works, construction, and utility projects.
Available to buy or hire, it’s the machine you can trust for every job site.
Mid-sized projects demand a machine that can balance power and precision without compromising manoeuvrability.
Many excavators in this class either lack the durability for intensive tasks or are too bulky for efficient site navigation.
Contractors, utility workers, and civil engineers need a reliable machine to meet these challenges head-on.
The Develon DX140LC Large Excavator is designed to overcome these challenges.
Equipped with advanced hydraulics, a powerful engine, and compact dimensions, it provides exceptional digging power and precision.
Whether trenching for utilities or handling site preparation, the DX140LC offers unmatched reliability and efficiency.
Plus, it’s available for purchase or hire to suit your project’s needs.
Engineered to deliver exceptional power and efficiency for medium-to-large projects.
Designed to provide smooth and accurate operation for complex tasks.
Spacious, climate-controlled cab reduces fatigue, ensuring long hours of productivity.
Built to handle tough job site conditions with minimal maintenance needs.
Compatible with a wide range of attachments for diverse tasks, from trenching to grading.
Advanced hydraulics ensure smooth and accurate operation on every task.
Built to handle the challenges of mid-sized projects with ease.
Ergonomic controls and climate systems enhance operator focus.
Ideal for construction, utility, and civil engineering projects.
Low-emission engine ensures eco-friendly operation.
Flexible purchase or hire solutions tailored to your project needs.
Ensure precise, efficient performance in demanding conditions.
Combines strength and sustainability for optimal performance.
Navigate confined sites with ease and efficiency.
Spacious, ergonomic controls for enhanced comfort and productivity.
Expand functionality for diverse job requirements.
Designed to withstand the harshest working conditions with minimal maintenance.
Model
Doosan DL06 Common Rail engine with direct fuel injection and electronic control, 4 valves per cylinder, vertical injectors, water cooled, turbo charged with air-to-air intercooler. The emission levels are well below the values required for phase III.
6
95 hp (71 kW) @ 1,850 rpm (SAE J1349, net)
44.5 kgf.m (436 Nm) at 1,400 rpm
5,890 cc
100mm x 125mm
24 V / 4.5 kW
2 x 12 V / 100 Ah
Double element with auto dust evacuation
101 dB(A) (2000 / 14 / EC)
71 dB(A) (ISO 6396)
The heart of the system is the e-EPOSTM (Electronic Power Optimising System). It allows the efficiency of the system to be optimised for all working conditions and minimizes fuel consumption.
The new e-EPOS is connected to the engine electronic control via a data transfer link to harmonise the operation of the engine and hydraulics.
2 variable displacement axial piston pumps
Maximum flow: 2 x 114 l/min
Gear pump – max flow: 27.75 l/min
Boom/arm/Bucket:
Travel: 330 kgf/cm2
Swing: 245 kgf/cm2
The piston rods and cylinder bodies are made of high-strength steel. A shock absorbing mechanism is fitted in all cylinders to ensure shock free operation and extend piston life.
Boom
2
110 x 75 x 1,085mm
Arm
1
115 x 80 x 1,108mm
Bucket
1
100 x 70 x 900mm
Upper rollers: 1
Lower rollers: 7
Shoes: 46
Total length of track: 3,755mm
0 to 10.7 rpm
Each track is driven by an independent axial piston motor through a planetary reduction gearbox.
Two levers with control pedals guarantee smooth travel with counterrotation on demand.
4.7 / 3.0km/h
35˚/ 70%
280 l
20 l
25 l
3.8 l
3 l
150 l
It excels in construction, utility work, and civil engineering projects.
Yes, Delecca’s offers flexible hire options to suit your project.
A wide range of attachments including buckets, grapples, and breakers are compatible.
Yes, it features a low-emission engine for sustainable operation.
The DX140LC is designed to withstand tough environments with minimal maintenance.
The DX140LC offers a digging depth of up to 5.5 metres.
Yes, Delecca’s provides flexible financing solutions.
Call us at 1300 77 88 26 or Book a Demo Online.
Delecca’s offers comprehensive maintenance support for all hired equipment.
The Develon DX140LC Large Excavator delivers the perfect balance of power, precision, and efficiency for your mid-sized projects.
Available to buy or hire, it’s your reliable partner on every job site.
Call 1300 77 88 26 or Explore the DX140LC Today!
