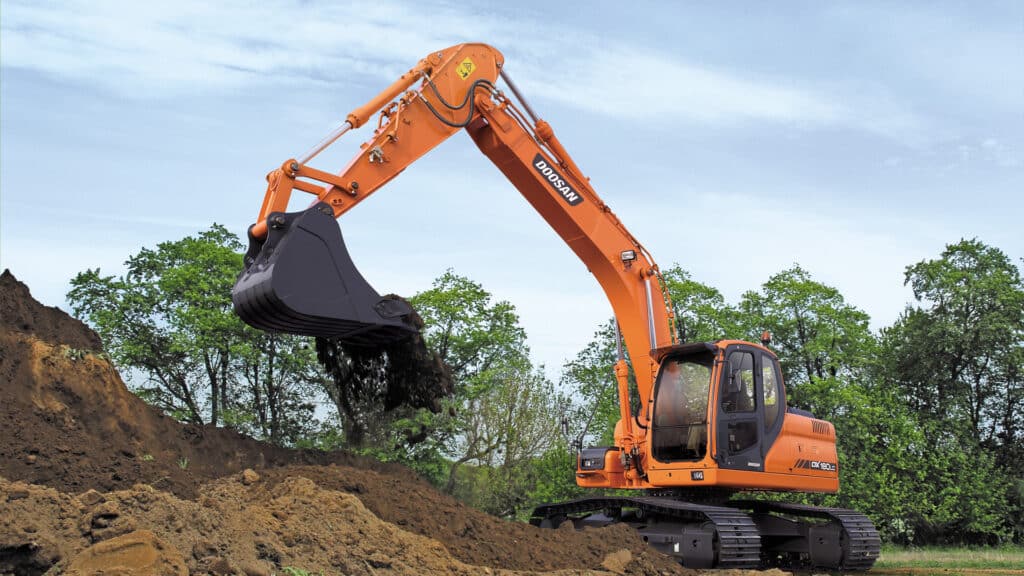

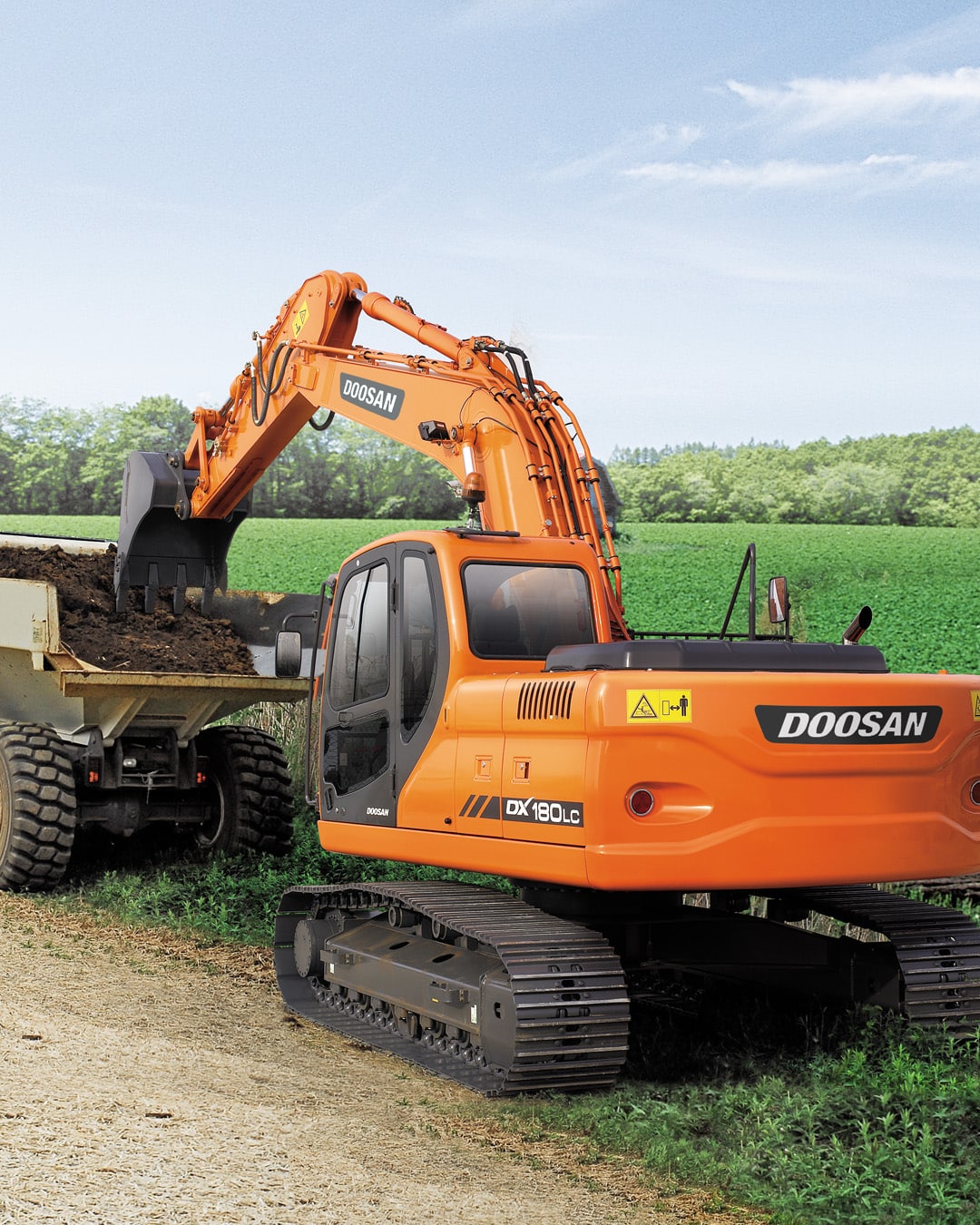

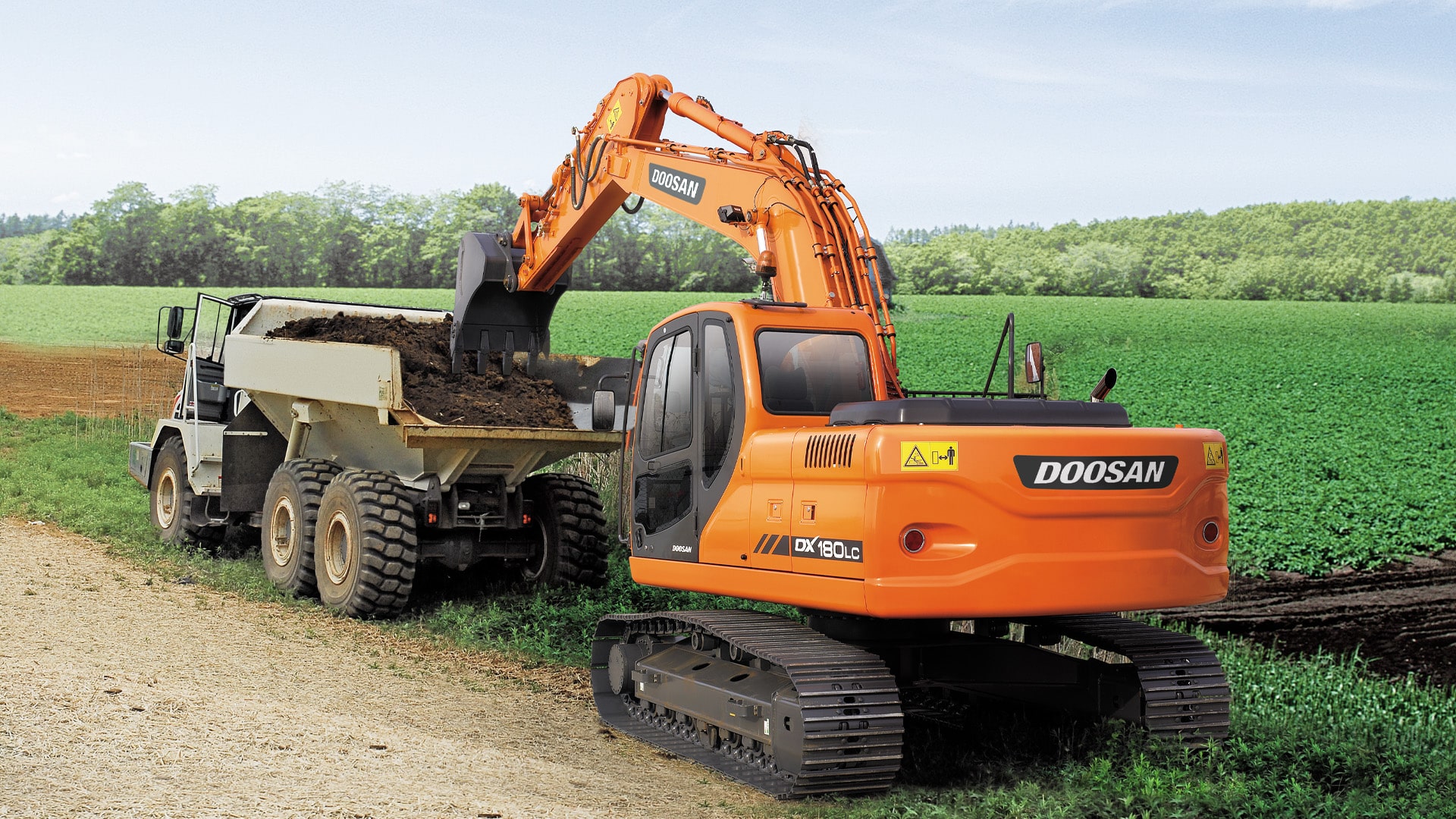

The Develon DX180LCN Large Excavator combines robust performance with a compact design, making it ideal for urban construction, civil works, and utility projects.
Available to buy or hire, it’s the dependable choice for demanding job sites.
Urban and confined job sites often require equipment that balances power and compactness.
Large machines can be unwieldy, while smaller ones may lack the capacity for demanding tasks.
Contractors, utility workers, and civil engineers need a versatile excavator that can handle these challenges efficiently.
The Develon DX180LCN Large Excavator is designed with a narrower frame and exceptional manoeuvrability, making it perfect for confined spaces.
Its advanced hydraulics and powerful engine deliver the performance needed for trenching, site prep, and heavy lifting.
Available for purchase or hire, it’s the perfect partner for your mid-sized projects.
Optimised for work in tight or restricted areas without compromising stability.
Delivers the strength needed for heavy-duty tasks with exceptional fuel efficiency.
Ensures smooth, precise movements for high-demand applications.
Spacious, climate-controlled cab reduces fatigue, enhancing productivity on long shifts.
Supports a wide range of attachments, making it ideal for trenching, grading, and material handling.
Navigate confined job sites with ease.
Handles heavy-duty tasks with a powerful engine and advanced hydraulics.
Ergonomic cab ensures long-term productivity.
Compatible with a range of attachments for different jobs.
Designed to minimise fuel consumption without compromising performance.
Built to withstand challenging conditions for long-term use.
Easily navigates confined spaces without compromising performance.
Provides reliable strength for heavy-duty applications.
Ensures smooth and precise operation for complex tasks.
Spacious and climate-controlled to enhance productivity.
Supports a wide range of tools for varied applications.
Engineered to handle demanding environments with minimal maintenance.
Model
Doosan DL06 Common Rail engine with direct fuel injection and electronic control, 4 valves per cylinder, vertical injectors, water cooled, turbo charged with air-to-air intercooler. The emission levels are well below the values required for phase III.
6
120 hp (88 kW) @1,950 rpm (DIN 6217)
118 hp (88 kW) @ 1,050 rpm (SAE 1349)
46 kgfm (451 Nm) at 1,400 rpm
5,890 cc
100 mm x 125 mm
24 V / 4.5 kW
2 x 12 V / 100 Ah
Double element with auto dust evacuation
Noise levels comply with environmental regulations (dynamic values).
102 dB(A) (2000 / 14 / EC)
71 dB(A) (ISO 6396)
The heart of the system is the e-EPOSTM (Electronic Power Optimising System). It allows the efficiency of the system to be optimised for all working conditions and minimizes fuel consumption.
The new e-EPOS is connected to the engine electronic control via a data transfer link to harmonise the operation of the engine and hydraulics.
2 variable displacement axial piston pumps
Maximum flow: 2 x 152 l/min
Gear pump – max flow: 18.5 l/min
Boom / Arm / Bucket:
Travel: 330 kgf/cm2
Swing: 270 kgf/cm2
The piston rods and cylinder bodies are made of high-strength steel. A shock absorbing mechanism is fitted in all cylinders to ensure shock free operation and extend piston life.
Boom
2
115 x 80 x 1,195 mm
Arm
1
125 x 90 x 1,470 mm
Bucket
1
110 x 75 x 1,025 mm
Upper rollers: 2 (standard shoes)
Lower rollers: 7
Shoes: 44
Total length of track: 3,968mm
0 to 10.7 rpm
Each track is driven by an independent axial piston motor through a planetary reduction gearbox.
Two levers with control pedals guarantee smooth travel with counterrotation on demand.
5.0 / 3.2km/h
9,900 / 15,300 kgf
35˚/ 70%
280 l
20 l
25 l
3.8 l
Final drive (each)
3 l
Hydraulic system
186 l
Hydraulic tank
150 l
Hydraulic System
Its narrow frame and compact design are perfect for confined spaces.
Ideal for urban construction, utility work, and civil engineering.
Yes, Delecca’s offers flexible hire options to fit your project’s needs.
Compatible with a variety of tools, including buckets, hammers, and grapples.
Yes, its eco-friendly engine ensures cost-effective operation.
It offers a maximum digging depth of 5.7 metres.
Yes, all Develon machines come with a standard warranty package.
Delecca’s provides flexible financing solutions for your convenience.
Call us at 1300 77 88 26 or Book a Demo Online.
The Develon DX180LCN Large Excavator combines compact design with powerful performance to handle urban and confined job sites effortlessly.
Available to buy or hire, it’s the perfect machine for your next project.
Call 1300 77 88 26 or explore the DX180LCN today!
