Bobcat E10 Mini Excavator
The compact Bobcat E10 mini excavator can work on jobsites where manual labour might be the only other option.
Small spaces. Big opportunities.
Small spaces.
Big opportunities.
The Bobcat E10 mini excavator is perfect for tight spaces. Its small size and light weight make it easy to transport, so you can use it on any jobsite.

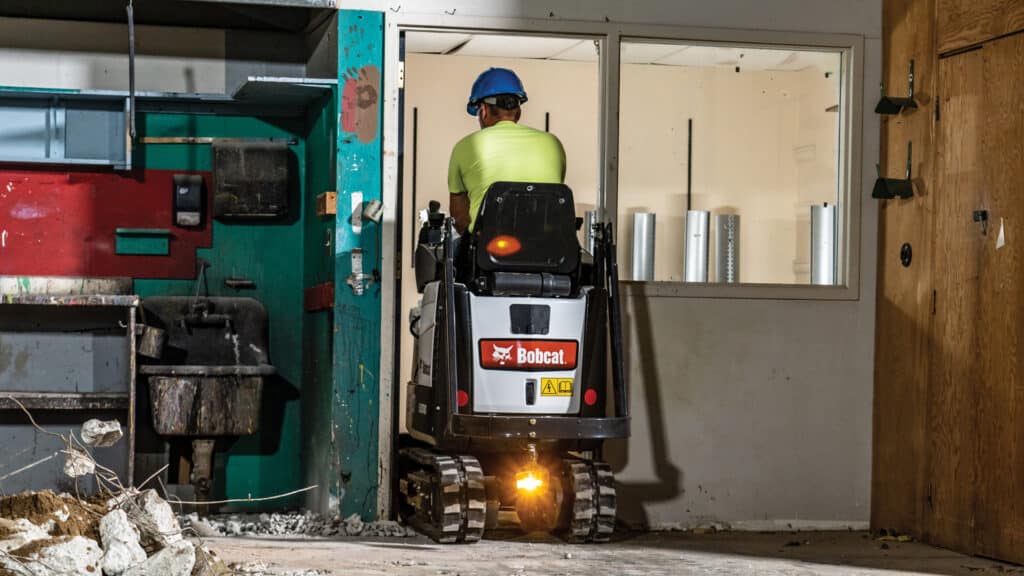

Do you need to get through a single door in a garage to access your working area? The Bobcat E10 can access difficult and cramped jobsites where shovels and wheelbarrows are your only other option.
With a digging depth of 1,820mm and an arm reach of 3,093mm, the Bobcat E10 mini excavator can handle most excavation tasks.
A perfect fit in tight places

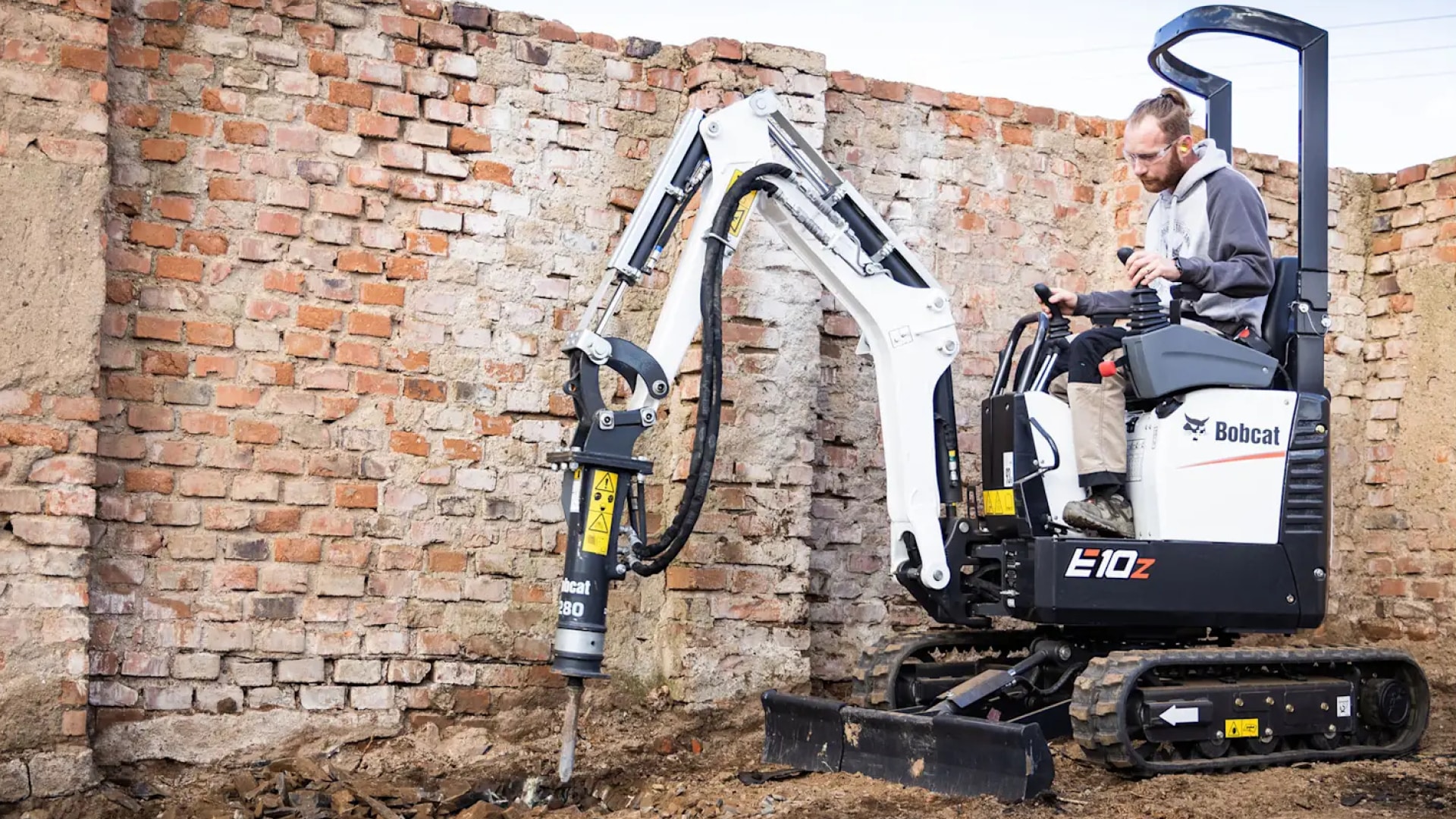

Its zero tail swing gives you ultimate flexibility to pivot and deposit soil while protecting you from contact with the property around you. It also has auxiliary hydraulics to power attachments like breakers and augers.
If you’re looking for an excavator that’s small enough to fit through doors but still packs a punch, this is the perfect choice.
Play Video about Steve Pilcher Landscapes
Bobcat E10 Mini Excavator Specifications
Overview
Operating weight
1,176kg
Tail swing type
Zero tail swing
Horsepower
7.6kW (10.2hp)
Width
711mm
Bucket Digging Force
8,296Nm
Maximum Reach at Ground Level
3.1m
Engine
Emissions Tier (EPA)
Tier 4
Engine Fuel
Diesel
Maximum Governed RPM
2,000rpm
Horsepower
7.6kW (10.2hp)
Turbocharged Engine
No
Optional Turbocharged Engine
No
Performance
Operating Weight
1,176kg
Weight Class
1t
Travel Speed – High
2.7km/h
Travel Speed – Low
2.1km/h
Arm Digging Force
5,551Nm
Bucket Digging Force
8,296Nm
Lift Radius
2,007mm
Boom Swing – Left
67°
Boom Swing – Right
64°
Maximum Dig Depth
1.8m
Maximum Dump Height
1.8m
Maximum Reach at Ground Level
3.1m
Capacities
Fuel Tank
15.9l
Hydraulic System
Auxiliary Standard Flow
20l/min
Auxiliary Pressure
190.02bar
Dimensions
Length
2,791mm
Overall Length in Travel Position
2,791mm
Width
711mm
Height
2,209mm
Height with Operator Cab
2,209mm
Features
Air Conditioning
N/A
Cab Enclosure
N/A
Cab Heater
N/A
Heater Air Conditioning
N/A
Radio
N/A
Tail Swing Type
Zero
Engine Shut Down
N/A
Auxiliary Hydraulics
Standard
Secondary Auxiliary Hydraulics
N/A
Quick Tach System
N/A
Rubber Track
Standard
Selectable Auxiliary Hydraulic Flow
N/A
Angle Blade
N/A
