Bobcat E17 Mini Excavator
The Bobcat E17 Mini Excavator has an impressive combination of features for a machine of its size. It’s versatile, powerful and durable making it a strong performer.
Perfect for tight spaces.
The dimensions of the Bobcat E17 give it unrivalled manoeuvrability in tight spaces – making it perfect for both construction and landscaping applications.
With a zero tail swing, it boasts an impressive digging force and working range. This functionality provides peace-of-mind, with 320° of free rotation when working close to walls and other obstructions, without sacrificing operator comfort or performance.
Handle any project – big or small
Handle any project –
big or small
The smoothness of workgroup functions, fast hydraulic performance in terms of low cycle times and its reliability, durability and easy service access makes this a machine to be reckoned with.
Play Video about Bobcat E17 Mini Excavator - Child's play ... ground

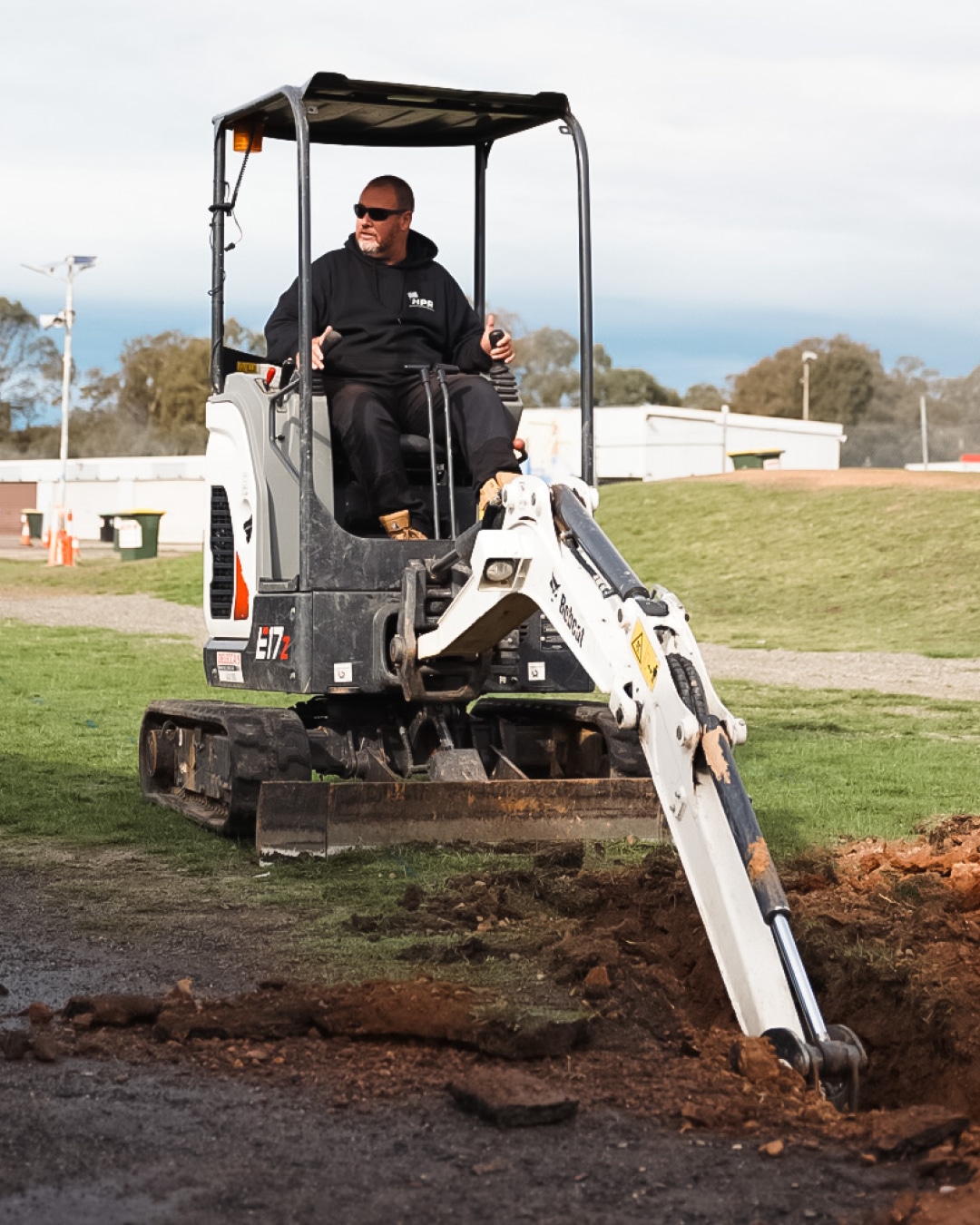

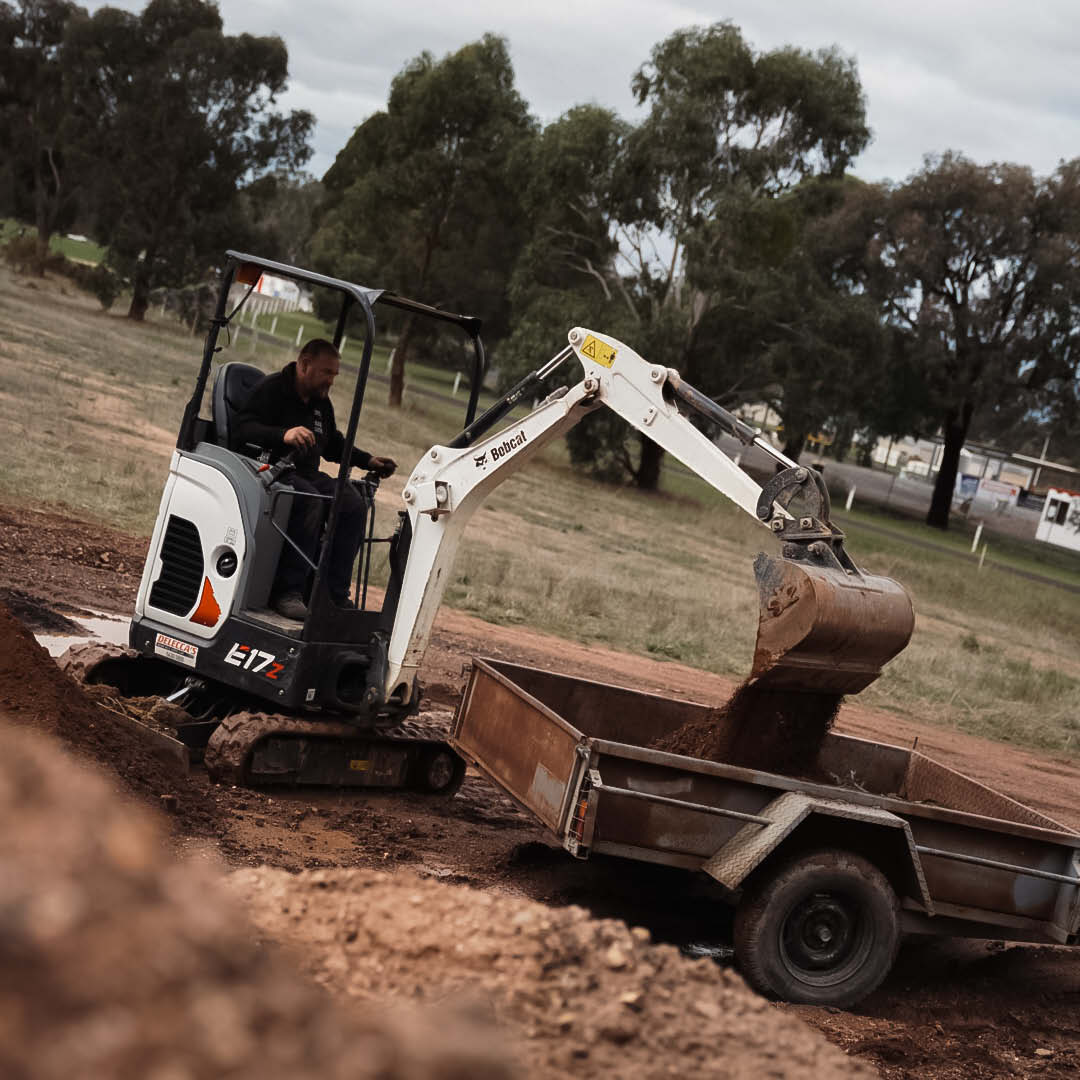

Images taken by Fato Khan at Heathcote Park Raceway; supplied by Heathcote Park Raceway.
Bobcat E17 Mini Excavator Specifications
Overview
Operating weight
1,749kg
Tail swing type
Zero house swing
Horsepower
9.9kW (13.9hp)
Width
980mm – 1360mm
Bucket Digging Force
9,108Nm
Digging Depth
2,249mm
Engine
Make / Model
D722-E4B-BCZ-7 Tier 4
Engine Fuel
Diesel
Number of Cylinders
3
Displacement
719cc
Maximum NET power (ISO 9249)
9.9kW (13.9hp)
Maximum NET torque (ISO 9249)
43.5Nm
Performance
Digging force, dipperstick (ISO 6015)
9,108Nm
Digging force, bucket (ISO 6015)
16,177Nm
Drawbar pull
19,302Nm
Travel Speed – Low Range
2.7km/h
Travel Speed – High Range
4.3km/h
Capacities
Fuel Tank
19.0l
Hydraulic Reservoir
13.9l
Hydraulic System
Pump Type
Dual piston pump with gear pump
Pump Capacity
41.3l/min
Piston Pump Capacity
30.0l/min
Auxiliary Flow
30.0l/min
Auxiliary Relief
180.0bar
Dimensions
Blade Height
235mm
Clearance / Upper Structure to Ground Line
419mm
Ground Line to Top of Engine Cover
1,138mm
Length of Track on Ground
1,114mm
Machine Centre Line to Blade
1,045mm
Minimum Radius in Travel Position
2,715mm
Overall Length of Track Assembly
1,476mm
Overall Length in Travel Position
3,450mm
Track Lug Height
25mm
Blade Width
980mm
Blade Width (Extensions Extended)
1,360mm
Height
2,299mm
Track Width
230mm
Machine Centre Line to Working Equipment Centre Line, Left-hand Rotation
450mm
Machine Centre Line to Working Equipment Centre Line, Right-hand Rotation
638mm
Minimum Turning Radius
1,190mm
Swing Clearance – Rear
690mm
Working Width at Maximum Right-hand Rotation
1,532mm
Working Width at Maximum Left-hand Rotation
1,370mm
Features
230mm Rubber Track
Standard
980mm Dozer Blade with Two 190mm Blade Extensions
Standard
Battery Disconnect Switch
Standard
Control Console Locks
Standard
Counterweight
Standard
Cupholders
Standard
Double Acting Auxiliary Hydraulics
Standard
Engine Monitor with Auto Shutdown
Standard
Foldable and Ergonomic Travel Pedals
Standard
Full Fuel Warning Alarm
Standard
Horn
Standard
Hydraulic and Travel Control Lockout
Standard
Hydraulic Joystick Controls
Standard
Hydraulically Retractable Undercarriage from 1,360mm to 980mm
Standard
Retractable Seat Belt
Standard
TOPS / ROPS / FOPS Canopy
Standard
Two Speed Travel
Standard
Upper Structure Four Point Tie Down
Standard
Water Separator
Standard
Work Light (Boom)
Standard
Warranty: 24 Months or 2,000 Hours (Whichever Occurs First)
Standard
Optional Features
Demolition Package (Boom, Arm, Bucket Cylinder Covers and HD Travel Hoses Guard)
Optional
Object Handling Package (Valves, OWD, Lifteye)
Optional
Long Dozer Blade
Optional
AUX1 Direct Return to Tank
Optional
AUX1 on Arm
Optional
Keyless Ignition
Optional
Travel Motion Alarm
Optional
Additional Halogen Lights
Optional
Beacon
Optional
Special Application Kit
Optional
Left / Right Mirrors
Optional
Fire Extinguisher
Optional
KLAC C and MS01 Couplers
Optional
