Bobcat E20 Mini Excavator
The Bobcat E20 mini excavator allows you to get up close to your work. It’s a powerful, versatile machine that can be used in tight spaces with minimal repositioning.
Wider footprint. Greater performance.
Wider footprint.
Greater performance.
The Bobcat E20 mini excavator is the perfect machine for the job. It’s small and lightweight but still packs a punch, making it perfect for any excavation project you have in mind.
Get on site faster
You won’t have to worry about struggling to move your excavator from one spot to another – the Bobcat E20 mini excavator is designed for easy manoeuvrability. With this machine, you can get up close to your work and complete even the most challenging projects with ease.

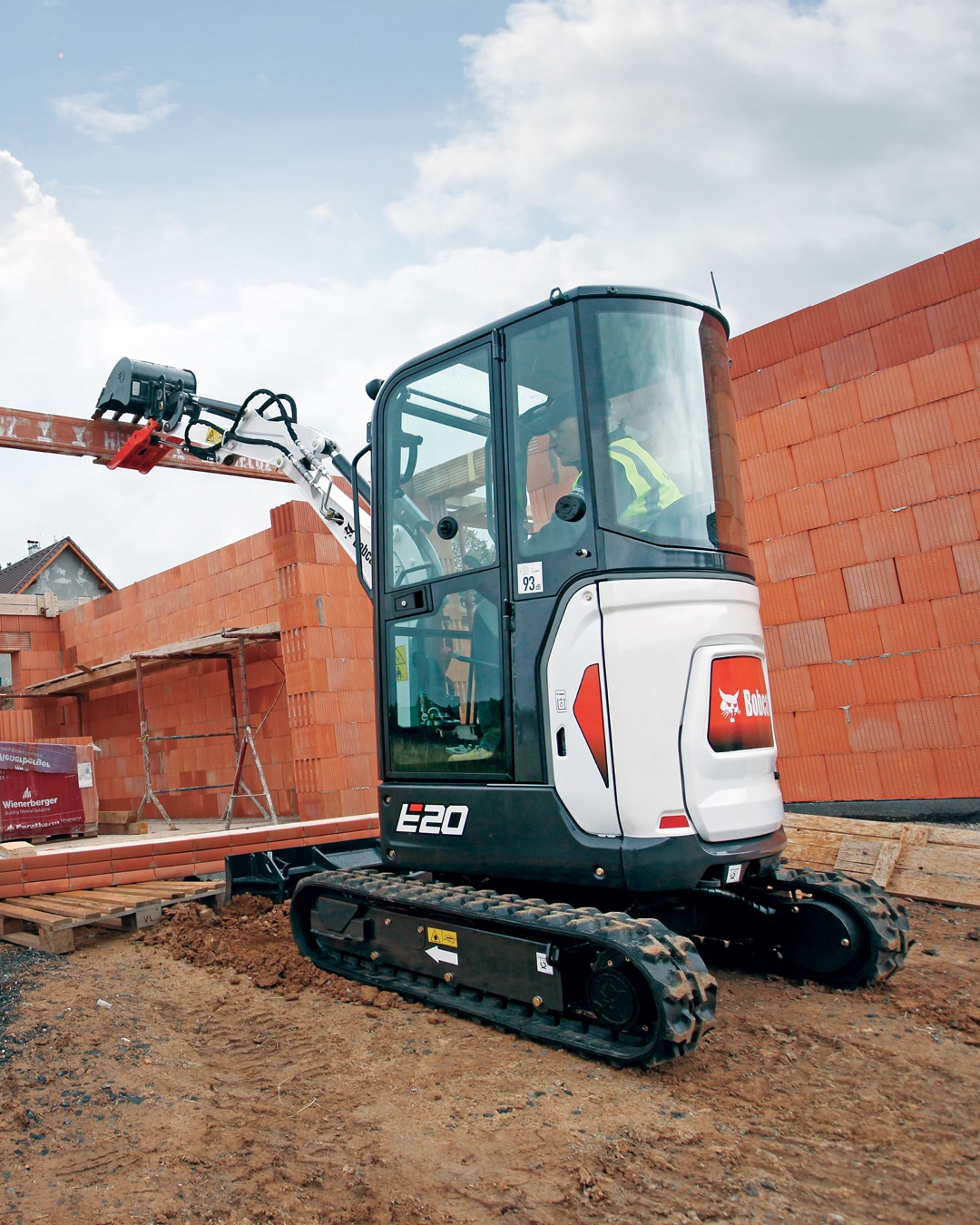

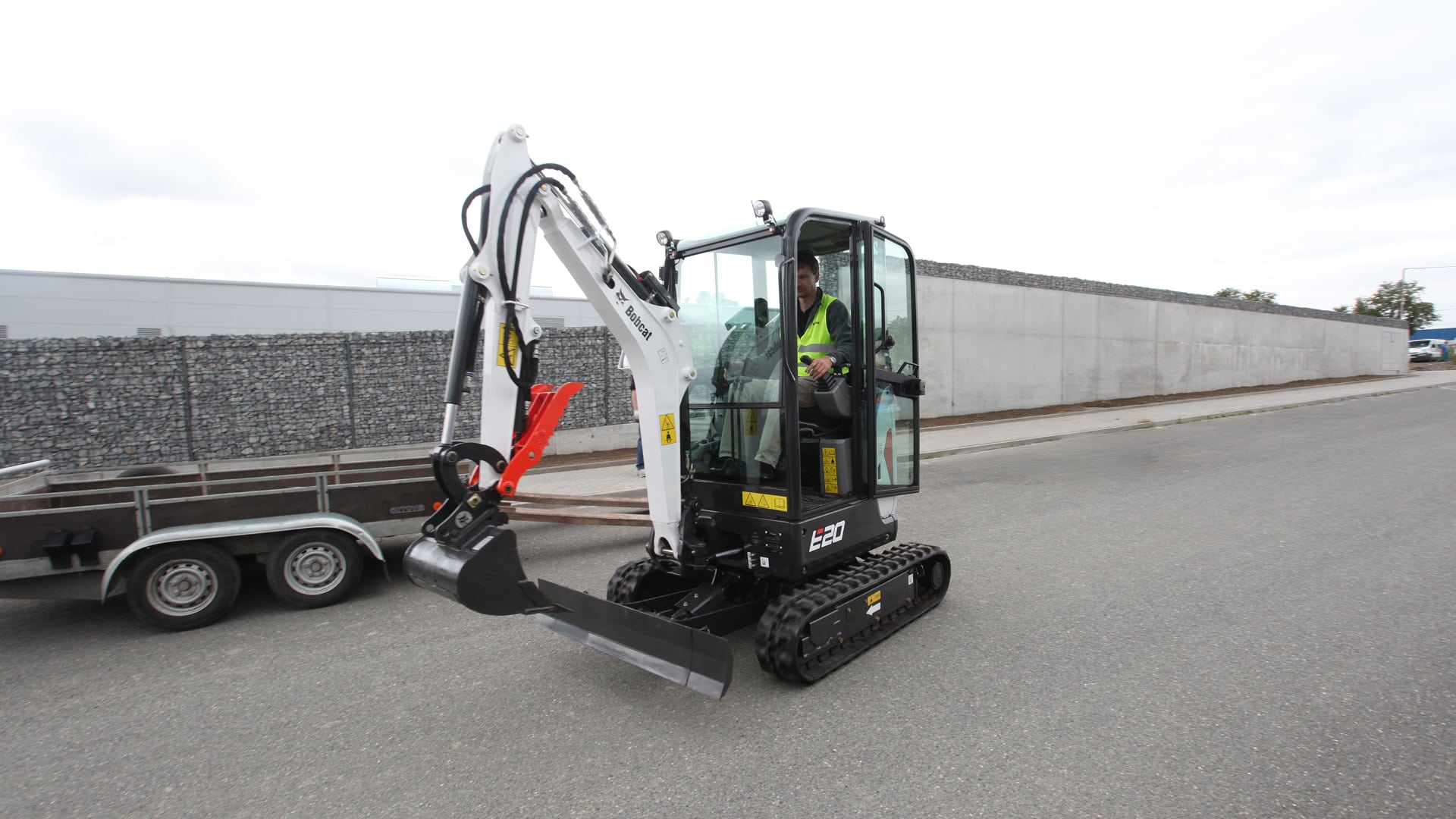

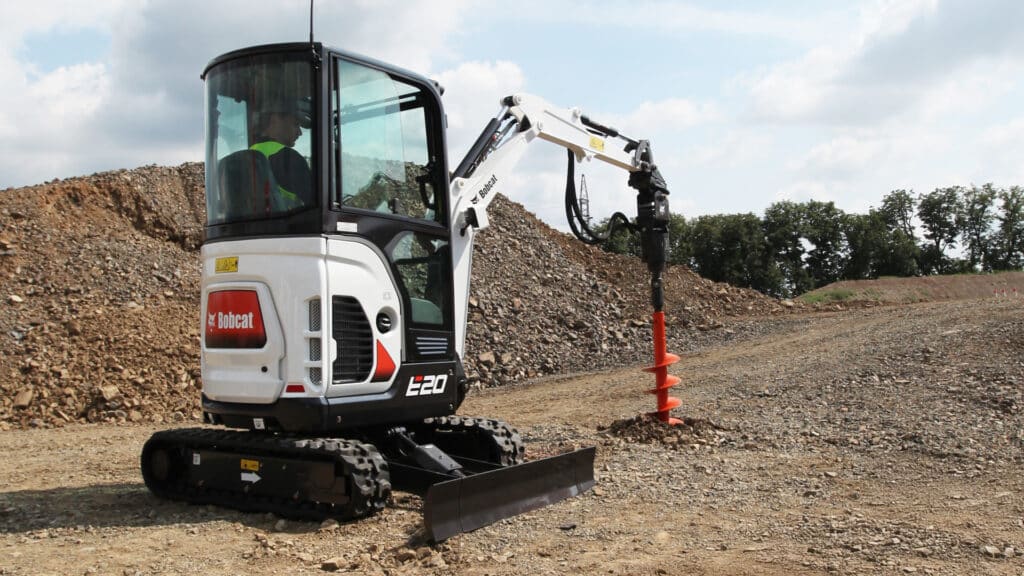

Note – photos showcase the Bobcat E20 Mini Excavator with optional enclosed cab.
Bobcat E20 Mini Excavator Specifications
Overview
Operating weight
1,953kg
Tail swing type
Zero house swing
Horsepower
10.37kW (13.9hp)
Digging Depth
2,602mm
Digging Breakout Force
9,279Nm
Engine
Emissions Tier (EPA)
Tier 4
Engine Fuel
Diesel
Maximum Governed RPM
2,500rpm
Horsepower
10.37kW (13.9hp)
Turbocharged Engine
No
Optional Turbocharged Engine
N/A
Performance
Operating Weight
1,953kg
Weight Class
2t
Travel Speed – High
4.2km/h
Travel Speed – Low
2.1km/h
Arm Digging Force
9,279Nm
Bucket Digging Force
20,835Nm
Lift Radius
2,997mm
Boom Swing – Left
80°
Boom Swing – Right
60°
Maximum Dig Depth
2.6m
Maximum Dump Height
2.7m
Maximum Reach at Ground Level
4.3m
Capacities
Fuel Tank
18.9l
Hydraulic System
Auxiliary Standard Flow
29.9l/min
Auxiliary Pressure
179.95bar
Dimensions
Length
3,688mm
Overall Length in Travel Position
3,688mm
Width
980mm – 1360mm
Height
2,297mm
Height with Operator Cab
2,297mm
Features
Air Conditioning
N/A
Cab Enclosure
Optional
Cab Heater
Optional
Heater Air Conditioning
N/A
Radio
Optional
Tail Swing Type
Zero
Engine Shut Down
Standard
Auxiliary Hydraulics
Standard
Secondary Auxiliary Hydraulics
N/A
Quick Tach System
N/A
Rubber Track
Standard
Selectable Auxiliary Hydraulic Flow
Optional
Angle Blade
N/A
