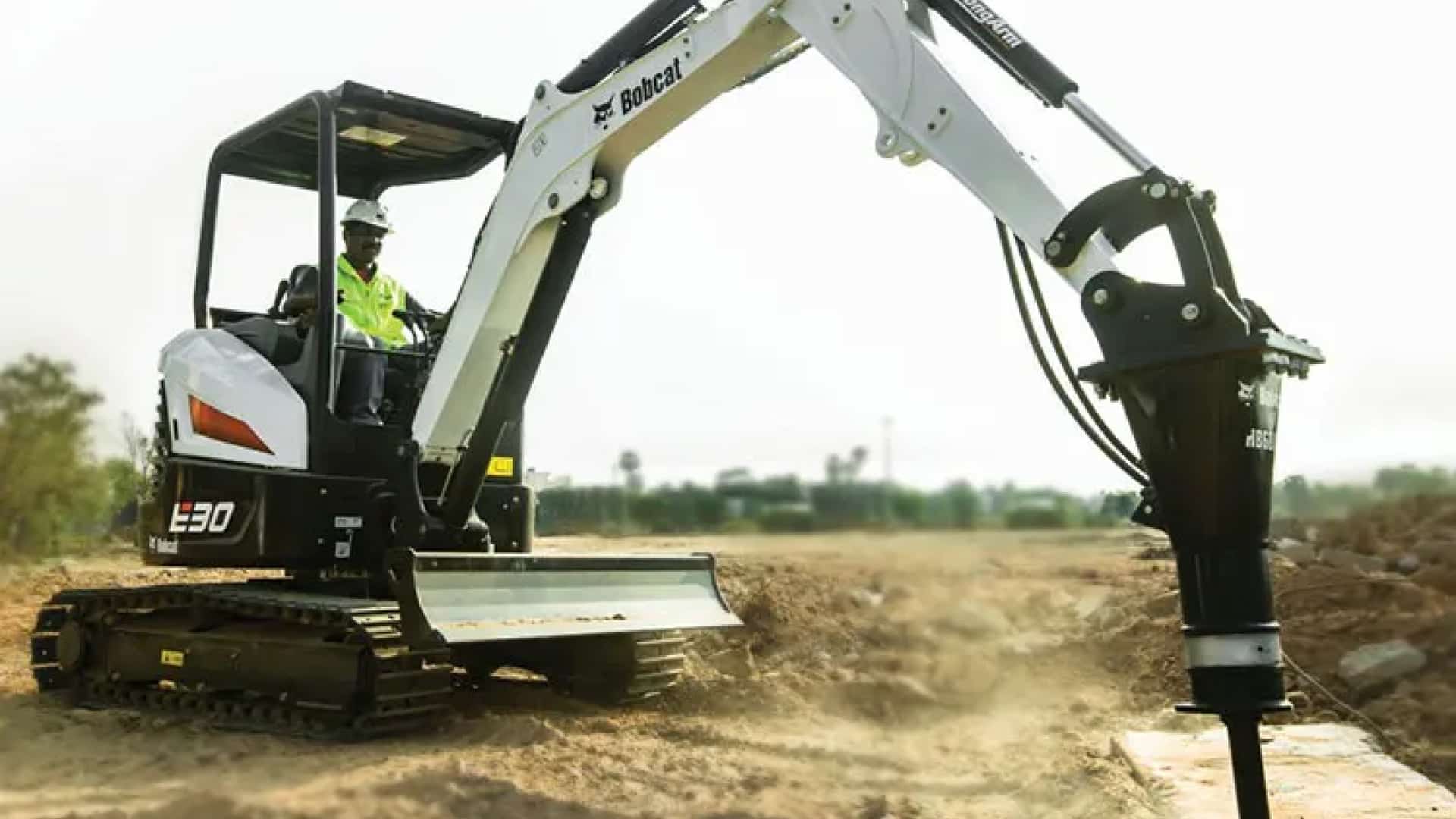

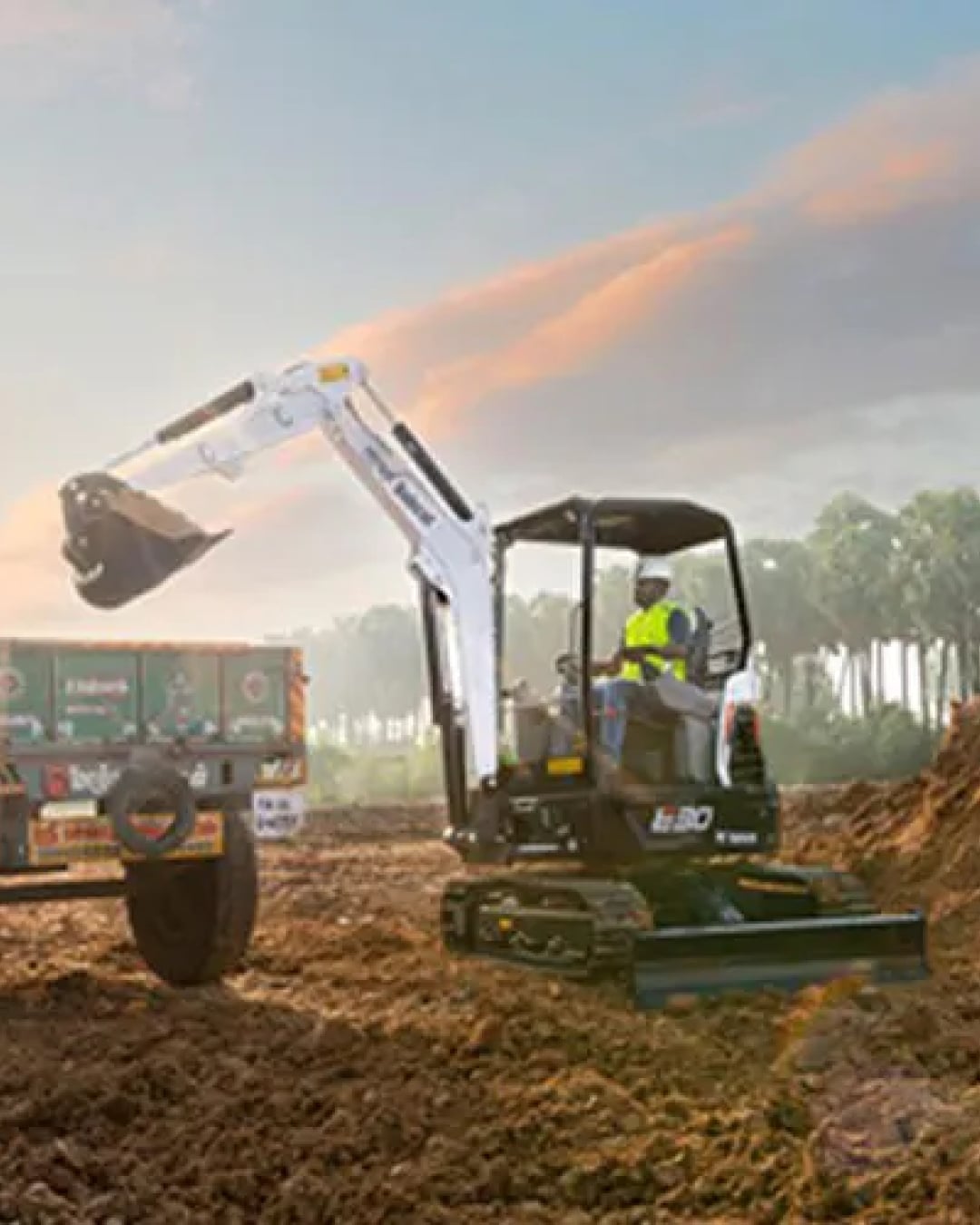

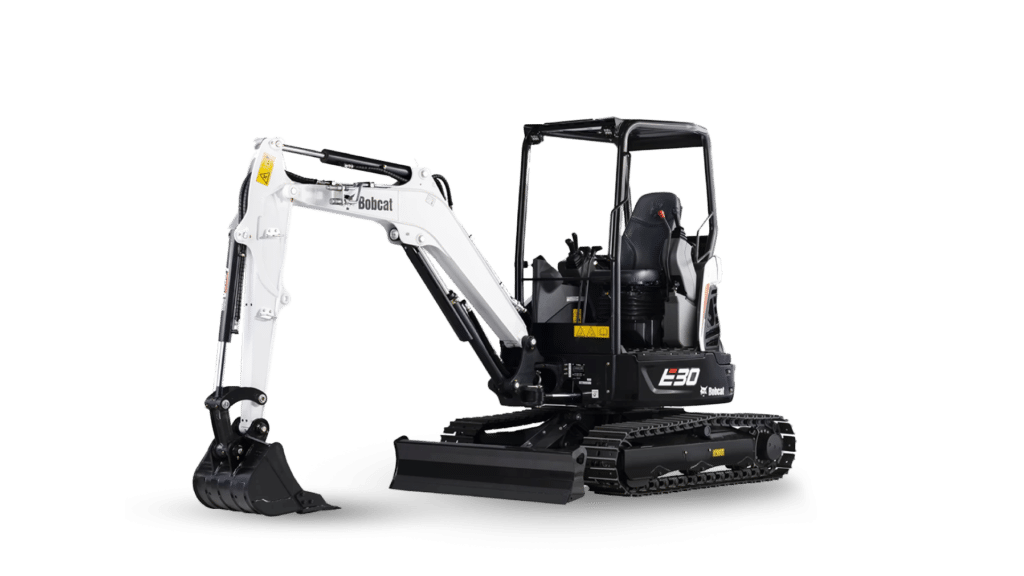

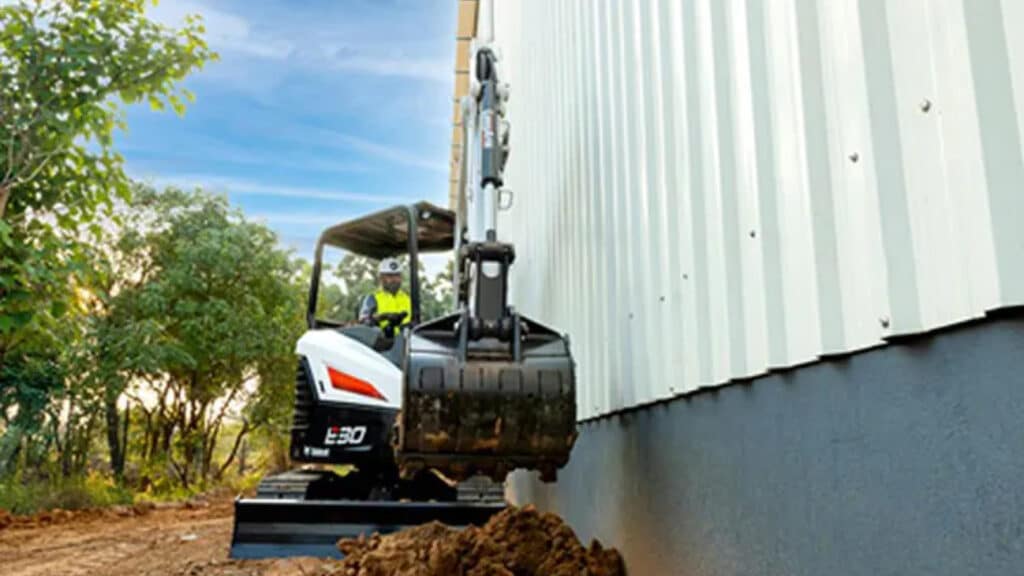

Bobcat E30 Mini Excavator
The Bobcat E30 mini excavator provides increased performance and comfort in a wide variety of applications. Perfect for jobsite clean-up, landscaping and excavation.
Reach further. Dig Deeper.
Reach further.
Dig deeper.
The Bobcat E30 mini excavator is the perfect machine for your landscaping and excavation needs.
This machine provides increased performance and comfort, making it perfect for a variety of applications. You’ll appreciate its wide range of features, including easy ground level access to the engine and hydraulic oil tanks.
Handle the tough jobs with ease
With a digging depth of 2,890mm and a reach of 4,850mm, the Bobcat E30 mini excavator can handle any job you throw at it. Plus, its standard auxiliary hydraulics give you added flexibility on the jobsite.
Bobcat E30 Mini Excavator Specifications
Overview
Operating weight
2,950kg (3,095kg Cabin)
Tail swing type
Minimal
Horsepower
18.5kW (24.8hp)
Width
1,400mm
Bucket Digging Force
25,200Nm
Maximum Reach at Ground Level
4.9m
Engine
Emissions Tier (EPA)
Tier 4
Engine Fuel
Diesel
Maximum Governed RPM
2,550rpm
Horsepower
18.5kW (24.8hp)
Turbocharged Engine
No
Optional Turbocharged Engine
N/A
Performance
Operating Weight
2,950kg (3,095kg Cabin)
Weight Class
2.9t
Travel Speed – High
5.2km/h
Travel Speed – Low
2.9km/h
Arm Digging Force
15,200Nm
Bucket Digging Force
25,200Nm
Lift Radius
2,997mm
Boom Swing – Left
70°
Boom Swing – Right
55°
Maximum Dig Depth
2.9m
Maximum Dump Height
3.3m
Maximum Reach at Ground Level
4.9m
Capacities
Fuel Tank
34.4l
Hydraulic System
Auxiliary Standard Flow
53.75l/min
Auxiliary Pressure
180.02bar
Dimensions
Length
4,343mm
Overall Length in Travel Position
4,343mm
Width
1,400mm
Height
2,438mm
Height with Operator Cab
2,438mm
Features
Air Conditioning
Optional
Cab Enclosure
Optional
Cab Heater
Optional
Heater Air Conditioning
Optional
Radio
Optional
Tail Swing Type
Minimal
Engine Shut Down
Standard
Auxiliary Hydraulics
Standard
Secondary Auxiliary Hydraulics
N/A
Hydraulic Hitch
Standard
Rubber Track
Standard
Selectable Auxiliary Hydraulic Flow
Standard
Angle Blade
N/A
