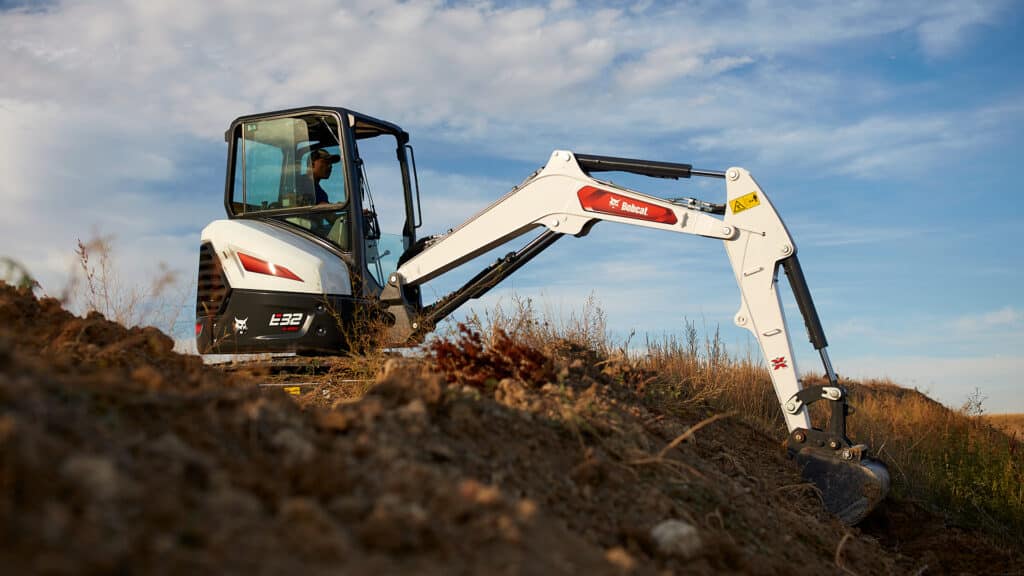

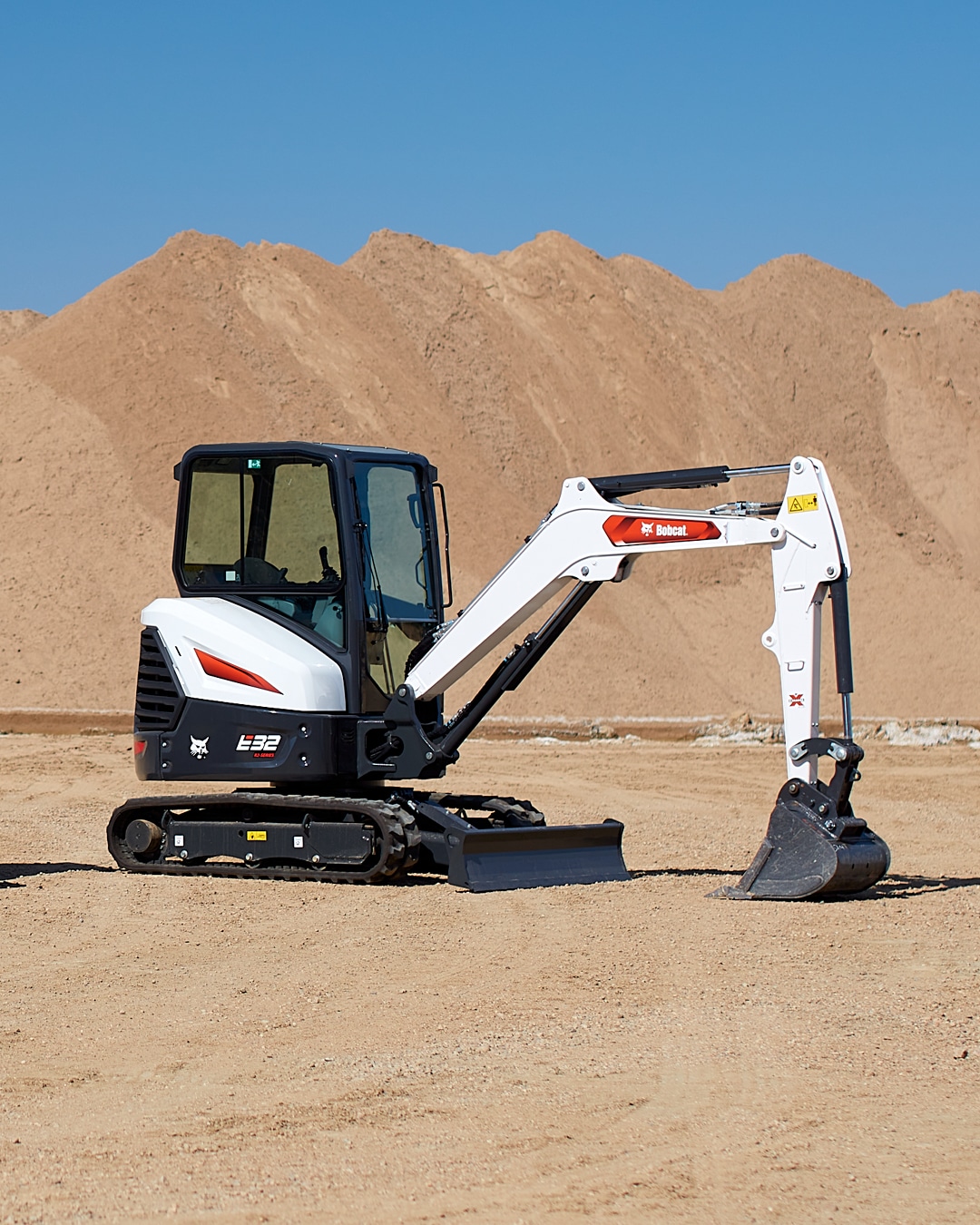

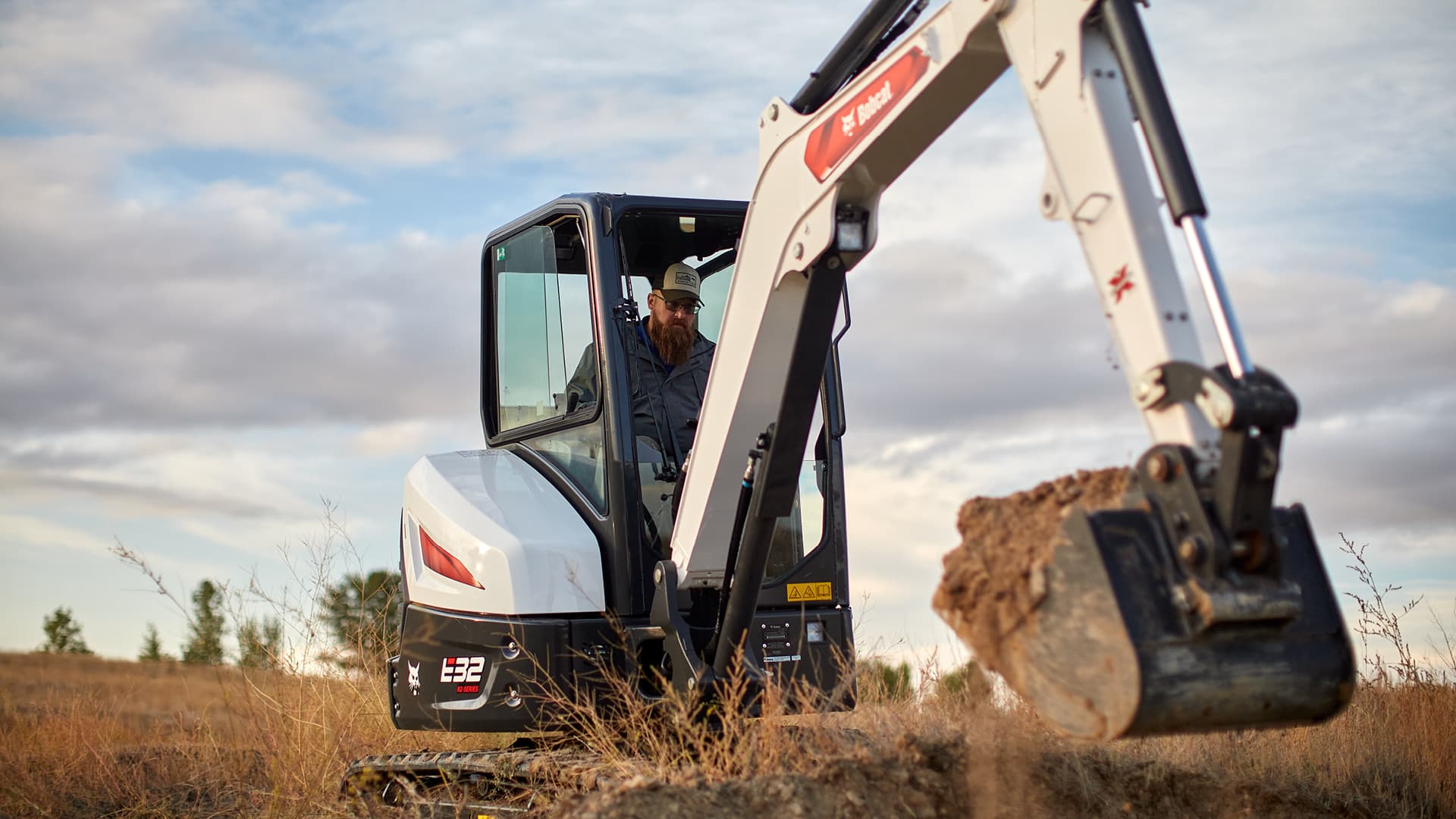

Bobcat E32 Mini Excavator
The Bobcat E32 mini excavator packs a powerful performance and manoeuvrability into a conventional tail swing design, getting you in and out of tight spots.
Get in and out of tight spaces
The Bobcat E32 mini excavator is perfect for tight spots, such as working around doors and gates.
With a long arm reach and excellent manoeuvrability, this excavator can handle any excavation project you throw at it.
Get it done in comfort and style
You’ll appreciate the comfort and convenience of the Bobcat E32 mini excavator. It comes standard with an enclosed cab with an option for air conditioning and a radio – making those long days on the job much more comfortable.
And with its fuel-efficient engine, you can reduce your operating costs without sacrificing power or performance.
Bobcat E32 Mini Excavator Specifications
Overview
Operating Weight
3,721kg
Tail Swing Type
Conventional
Horsepower
18.5kW (24.8hp)
Width
1,549mm
Bucket Digging Force
30,995Nm
Maximum Reach at Ground Level
5.3m
Engine
Emissions Tier (EPA)
Tier 4
Engine Fuel
Diesel
Maximum Governed RPM
2,200rpm
Horsepower
18.5kW (24.8hp)
Turbocharged Engine
N/A
Optional Turbocharged Engine
N/A
Performance
Operating Weight
3,721kg
Weight Class
3.3t
Travel Speed – High
4.66km/h
Travel Speed – Low
2.6km/h
Arm Digging Force
19,919Nm
Bucket Digging Force
30,995Nm
Lift Radius
2,997mm
Boom Swing – Left
75°
Boom Swing – Right
55°
Maximum Dig Depth
3.4m
Maximum Dump Height
3.5m
Maximum Reach at Ground Level
5.3m
Capacities
Fuel Tank
51.9l
Hydraulic System
Auxiliary Standard Flow
64l/min
Auxiliary Pressure
205.95bar
Dimensions
Length
4,768mm
Overall Length in Travel Position
4,768mm
Width
1,549mm
Height
2,443mm
Height with Operator Cab
2,443mm
Features
Air Conditioning
Optional
Cab Enclosure
Optional
Cab Heater
Optional
Heater Air Conditioning
Optional
Radio
Optional
Tail Swing Type
Zero
Engine Shut Down
Standard
Auxiliary Hydraulics
Standard
Secondary Auxiliary Hydraulics
Optional
Hydraulic Hitch
Standard
Rubber Track
Standard
Selectable Auxiliary Hydraulic Flow
Standard
Angle Blade
N/A
