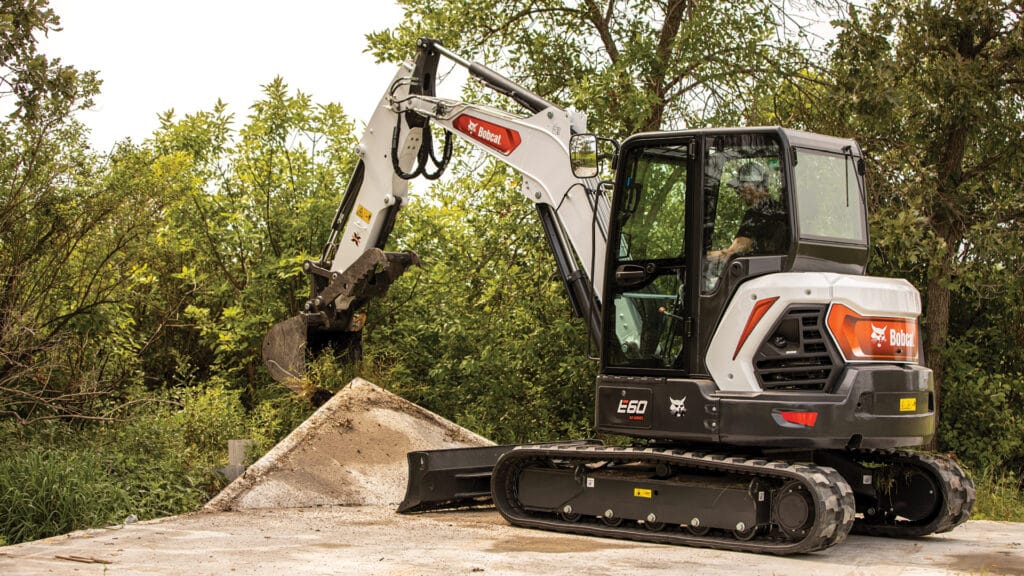

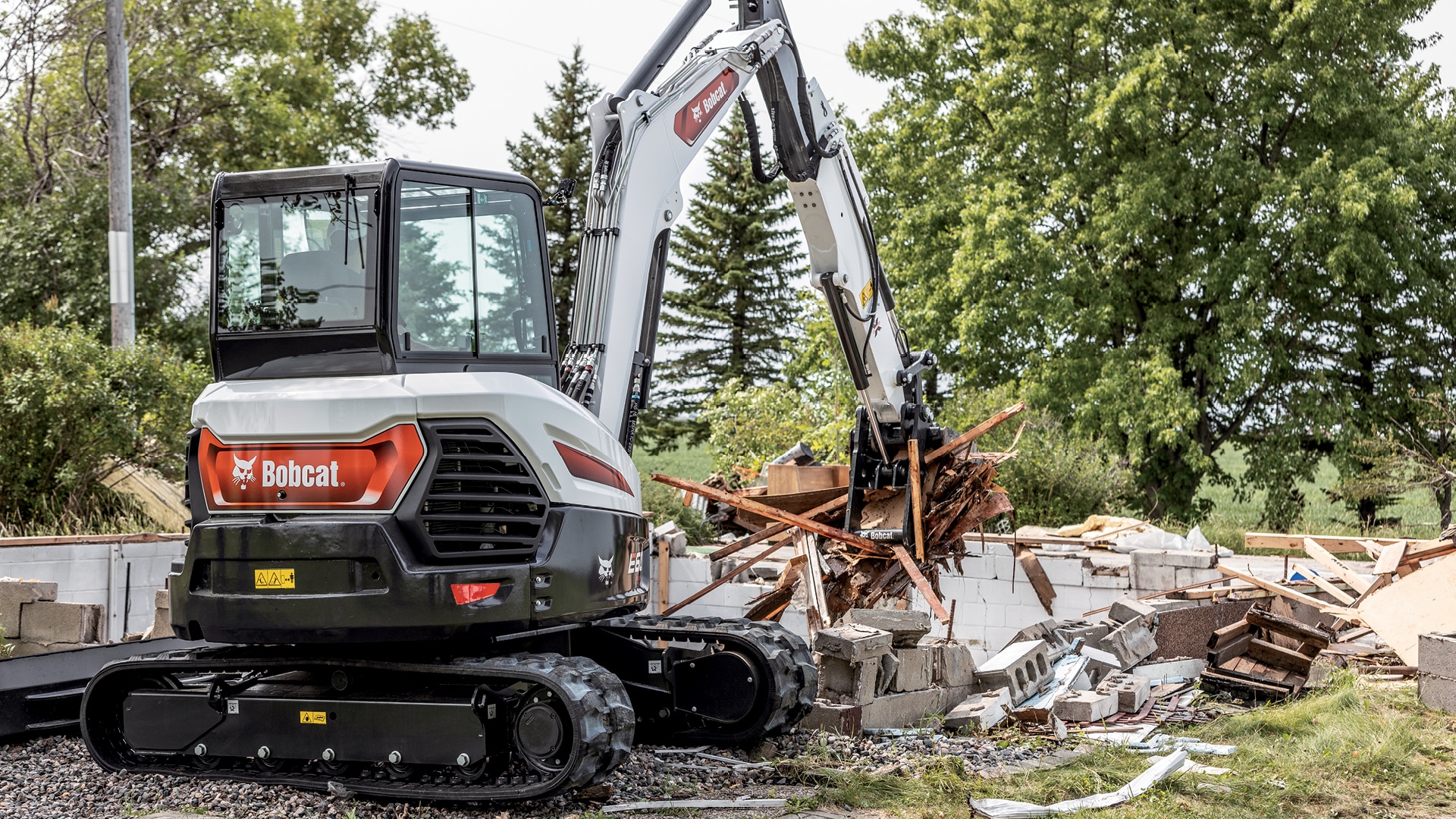

Bobcat E60 Mini Excavator
The Bobcat E60 mini excavator is a durable and powerful machine that can help you complete your work faster. Redesigned with a new engine, premium cab and more.
Powerful and durable
Looking for a powerful mini excavator that can help you get the job done quickly and easily?
The powerful Bobcat E60 mini excavator pushes performance to the limits, so you can tackle tough jobs fast and get more done.
It’s been redesigned with a new engine, premium cab and more to make your work easier than ever before.
Tackle aggressive digs and challenging lifts
The Bobcat E60 mini excavator delivers maximum hydraulic and engine horsepower and goes even further with an extendable arm option.
A redesigned engine reduces and simplifies maintenance requirements, which makes it easier to service. The new model has an improved cooling system and operates more quietly, whilst an increased lift-over-side capacity is matched with improved over-the-side digging and slewing performance.
Operators can enjoy premium comfort features, such as improved headroom and legroom, ergonomic controls, reduced vibration, and less noise.
The suite of available options includes a widescreen touch display, rear-view camera and automatic heating or air conditioning.
Bobcat E60 Mini Excavator Specifications
Overview
Operating weight
5,586kg
Tail swing type
Conventional
Horsepower
55.7kW (74.6hp)
Width
1,960mm
Bucket Digging Force
45,642Nm
Maximum Reach at Ground Level
6.2m
Engine
Emissions Tier (EPA)
Tier 4
Engine Fuel
Diesel
Maximum Governed RPM
2,400rpm
Horsepower
55.7kW (74.6hp)
Turbocharged Engine
Yes
Performance
Operating Weight
5,586kg
Weight Class
6t
Travel Speed – High
4.5km/h
Travel Speed – Low
2.9km/h
Arm Digging Force
28,674Nm
Bucket Digging Force
45,642Nm
Rated Lift Capacity
2,908kg
Lift Radius
3,000mm
Boom Swing – Left
75°
Boom Swing – Right
50°
Maximum Dig Depth
3.9m
Maximum Dump Height
4.2m
Maximum Reach at Ground Level
6.2m
Capacities
Fuel Tank
71.9l
Hydraulic System
Auxiliary Standard Flow
75.7l/min
Auxiliary Pressure
209.95bar
Dimensions
Length
5,545mm
Overall Length in Travel Position
5,545mm
Width
1,960mm
Height
2,543mm
Height with Operator Cab
2,543mm
Features
Air Conditioning
Standard
Cab Enclosure
Standard
Cab Heater
Standard
Heater Air Conditioning
Standard
Radio
Standard
Tail Swing Type
Conventional
Engine Shut Down
Standard
Auxiliary Hydraulics
Standard
Secondary Auxiliary Hydraulics
Standard
Quick Tach System
Standard
Rubber Track
Standard
Selectable Auxiliary Hydraulic Flow
Standard
Angle Blade
Optional
