Bobcat S450 Skid Steer Loader
The Bobcat S450 skid steer loader has a radius-lift path and a small chassis – it’s perfect for construction and landscaping projects operating in tight quarters.
Unparalleled mobility
Looking for a powerful machine to help with your construction or landscaping projects?
The Bobcat S450 skid steer loader is perfect for tight spaces and has a great turning radius. Plus, it’s now equipped with a Stage V compliant engine for greater power and reach.

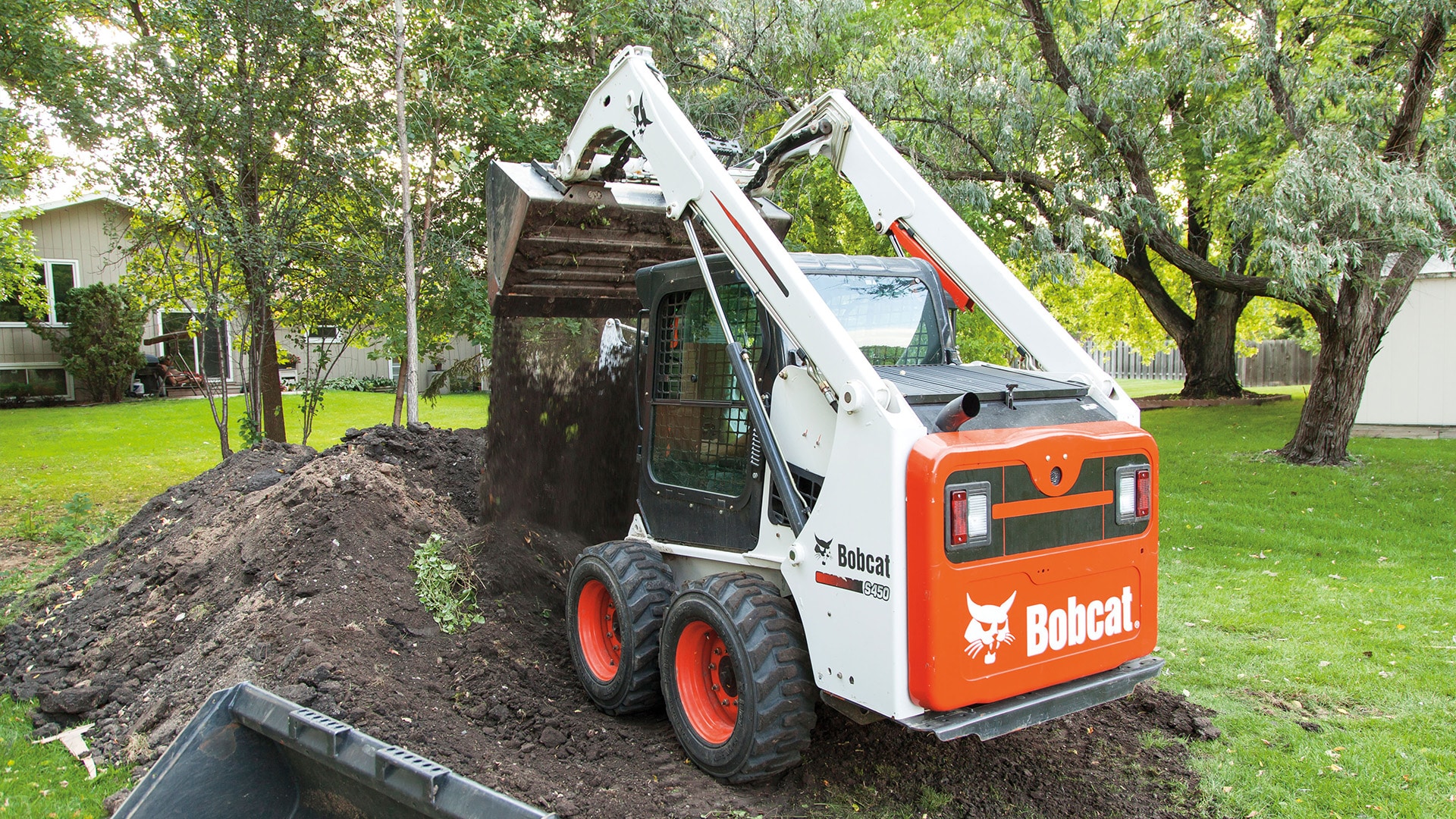

You can rely on the Bobcat S450 to get the job done quickly and easily – no matter how big or small the project may be. It’s the perfect machine for any construction or landscaping need you may have – like dumping over a wall, backfilling or unloading flatbed trucks.
tight squeeze? No problem
The Bobcat S450 skid steer loader has a radius-lift path and a small chassis, making it perfect for operating in tight quarters.
Because of the 2.4 litre Tier 4 diesel engine and ultra-efficient fuel system, you can expect easier starts, smoother running, and less noise.
The optional ROPS / FOPS Level II certified cab is designed for all-day use, with low noise levels, simple, straightforward controls, and a comfortable seat. The tall, expansive windows maximise glass surface area for maximum visibility on the jobsite. The Bobcat S450’s tight turning radius provides unparalleled mobility.
Bobcat S450 Skid Steer Loader Specifications
Overview
Tipping Load
1,308kg
Engine Power
36.5kW (49hp)
Operating Weight
2,243kg
Lift Height
2,781mm
ROC
608kg
Engine
Make / Model
Bobcat Common Rail D18
Fuel
Diesel
Cooling
Liquid
Power at 2600rpm (ISO 14396)
36.5kW (49hp)
Torque at 1800rpm (ISO 14396)
182.2Nm
Number of Cylinders
4
Displacement
1.8l
Fuel Tank
53.8l
Performance
Tipping Load (ISO 14397-1)
1,308kg
Rated Operating Capacity (ISO 14397-1)
608kg
Pump Capacity
64l/min
System Relief at Quick Couplers
22.4 – 23.1MPa
Maximum Travel Speed (High Range – Optional)
14.8km/h
Maximum Travel Speed (Low Range)
11.26km/h
Dimensions
Operatoring Height
3,558mm
Height with Operator Cab
1,976mm
Angle of Departure
23°
Ground Clearance
214mm
Wheelbase
900mm
Length without Attachment
2,502mm
Length with Standard Bucket
3,172mm
Rollback at Ground Position
26°
Dump Height with Standard Bucket
2,157mm
Height to Bucket Hinge Pin
2,782mm
Dump Reach at Maximum Height
587mm
Dump Angle at Maximum Height
40°
Rollback Fully Raised at Maximum Height
91°
Width Over Standard Bucket
1,575mm
Turning Radius with Standard Bucket
1,941mm
Features
Bobcat Interlock Control System (BICS)
Standard
Parking Brake
Standard
Deluxe Operator Cab – Includes Interior Cab Foam, Side, Top and Rear Windows, Deluxe Wire Harness, Dome Light, and Electrical Power Port
Standard
Noise Reduction Kit
Standard
Operating Lights, Front and Rear
Standard
Deluxe Instrument Panel
Standard
Keyless Start with Password Capability
Standard
Suspension Seat
Standard
Seat Belt
Standard
Seat Bar
Standard
10 x 16.5, 10-ply, Heavy Duty Tyres
Standard
Bob-Tach Frame
Standard
Cushioned Lift and Tilt Cylinders
Standard
Lift-Arm Support
Standard
Engine / Hydraulics System Shutdown
Standard
Electrically Activated Proportional Front Auxiliary Hydraulics
Standard
Auxiliary Hydraulics: Variable Flow / Maximum Flow
Standard
Machine IQ (Telematic)
Standard
Manual
Standard
CE Certification
Standard
Warranty: 24 Months or 2,000 Hours (Whichever Occurs First)
Standard
