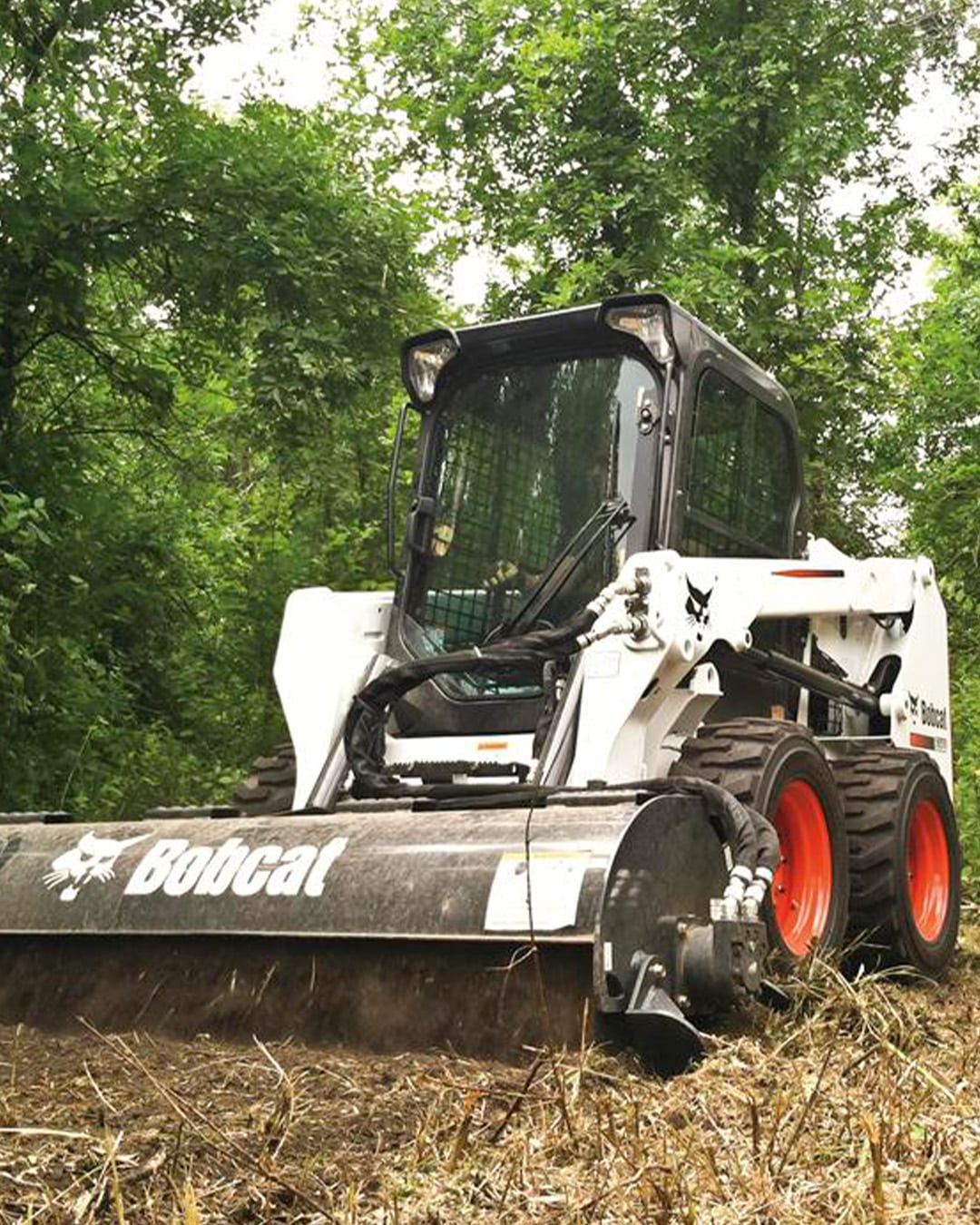

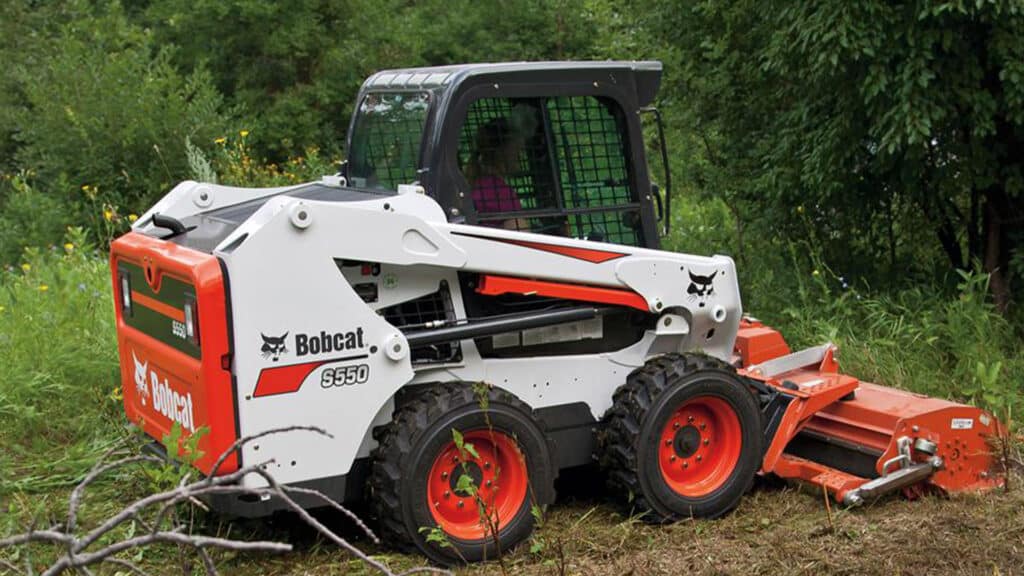

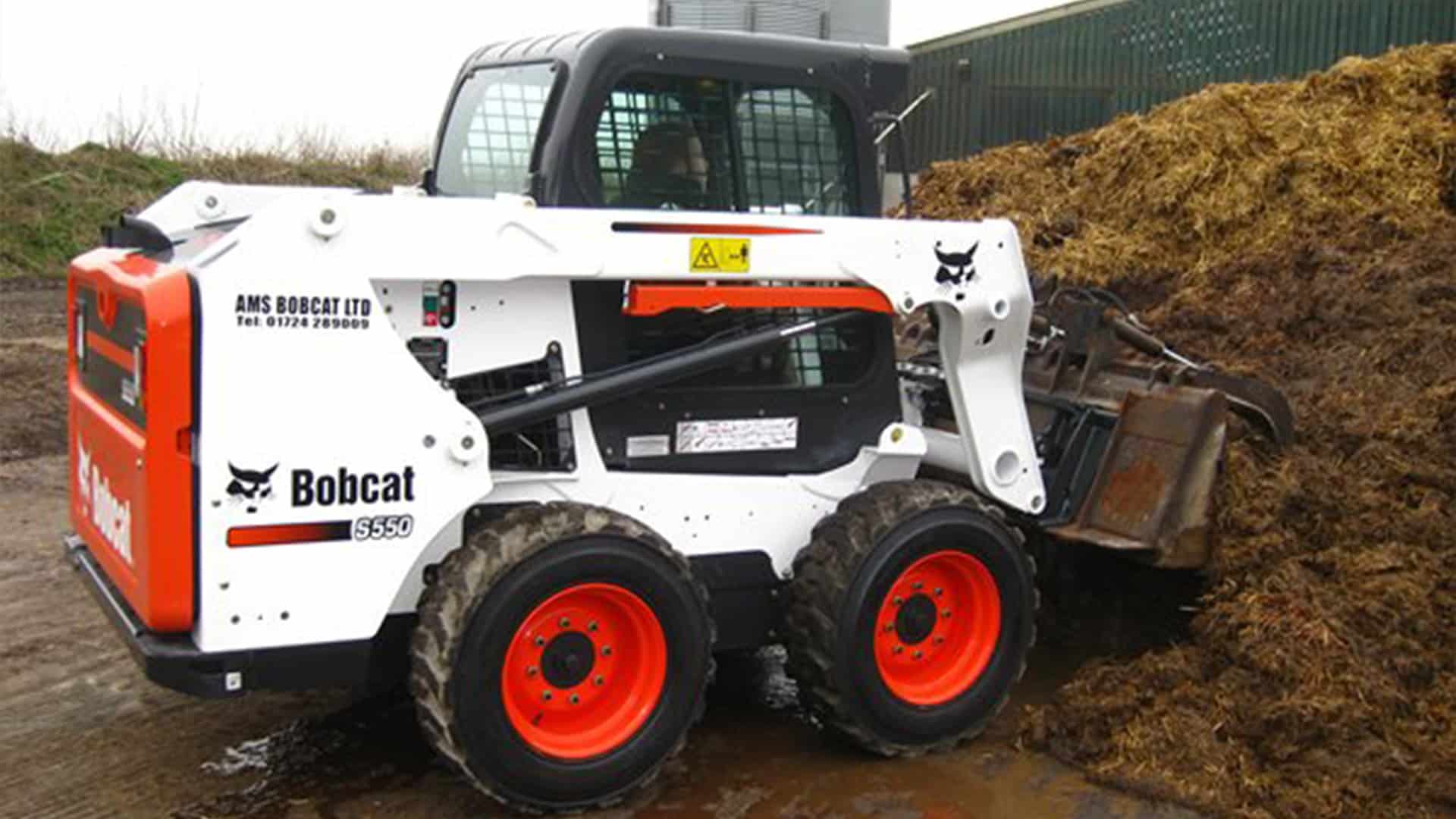

Bobcat S550 Skid Steer Loader
The Bobcat S550 skid steer loader is the perfect mix and power and efficiency. Built with a long wheelbase and large turning radius, it gets jobs done quickly and easily.
Home » Loader » Skid Steer » Bobcat S550 Skid Steer Loader

The perfect mix of power and efficiency
The perfect mix of
power and efficiency
Looking for a powerful radius-lift-path loader?
The Bobcat S550 skid steer loader is perfect for your needs. It’s now equipped with a Stage V compliant Bobcat engine that makes it even more powerful and efficient. Plus, it has a long wheelbase and large turning radius so you can get the job done quickly and easily.
You’ll appreciate the comfort and convenience of the cab, which offers great visibility all around. And because this machine is so versatile, you can use it for a wide variety of applications. Get the job done right with the Bobcat S550 skid steer loader.
heading
copy

Play Video about Steve Pilcher Landscapes

Bobcat S550 Skid Steer Loader Specifications
Overview
Tipping Load
1,852kg
Engine Power
45.5kW (61hp)
Operating Weight
2,841kg
Lift Height
2,908mm
ROC
794kg
Engine
Make / Model
Kubota V2607-T
Fuel
Diesel
Cooling
Liquid
Power at 2600rpm
45.5kW (61hp)
Number of Cylinders
4
Displacement
2,615cc
Fuel Tank
93.7l
Performance
Tipping Load (ISO 14397-1)
1,852kg
Rated Operating Capacity (ISO 14397-1)
794kg
Pump Capacity
64/min
Pump Capacity (with High Flow Option)
101.1l/min
System Relief at Quick Couplers
23.8 – 24.5MPa
Maximum Travel Speed (High Range – Option)
17.3km/h
Maximum Travel Speed (Low Range)
11.8km/h
Dimensions
Operating Height
3,787mm
Height with Operator Cab
1,976mm
Angle of Departure
24.2°
Ground Clearance
185mm
Wheelbase
1,082mm
Length without Attachment
2,657mm
Length with Standard Bucket
3,378mm
Rollback at Ground Position
30°
Dump Height with Standard Bucket
2,205mm
Height to Bucket Hinge Pin
2,908mm
Dump Reach at Maximum Height
467mm
Dump Angle at Maximum Height
42°
Rollback Fully Raised at Maximum Height
97°
Width Over Standard Bucket
1,727mm
Turning Radius with Standard Bucket
2,032mm
Track – Standard Tyres
1,374mm
Width Over Standard Tyres
1,524mm
Features
10 x 16.5, 10-ply, Versatile Duty Tyres
Standard
Selectable Joystick Controls (SJC – R/C Ready)
Standard
High Flow Auxiliary Hydraulics
Standard
7-Pin Attachment Control
Standard
2 Speed
Standard
Bobcat Interlock Control System (BICS)
Standard
Parking Brake
Standard
Deluxe Operator Cab – Includes Interior Cab Foam, Side, Top and Rear Windows, Deluxe Wire Harness, Dome Light, and Electrical Power Port
Standard
Noise Reduction Kit
Standard
Operating Lights, Front and Rear
Standard
Deluxe Instrument Panel
Standard
Keyless Start with Password Capability
Standard
Suspension Seat
Standard
Seat Belt
Standard
Seat Bar
Standard
Hydraulic Bucket Positioning (including On/Off Switch)
Standard
Bob-Tach Frame
Standard
Cushioned Lift and Tilt Cylinders
Standard
Lift-Arm Support
Standard
Engine / Hydraulics System Shutdown
Standard
Sparks Arrestor Muffler
Standard
Automatically Activated Glow Plugs
Standard
Electrically Activated Proportional Front Auxiliary Hydraulics
Standard
Machine IQ (Telematic)
Standard
Manual
Standard
CE Certification
Standard
Warranty: 24 Months or 2,000 Hours (Whichever Occurs First)
Standard
