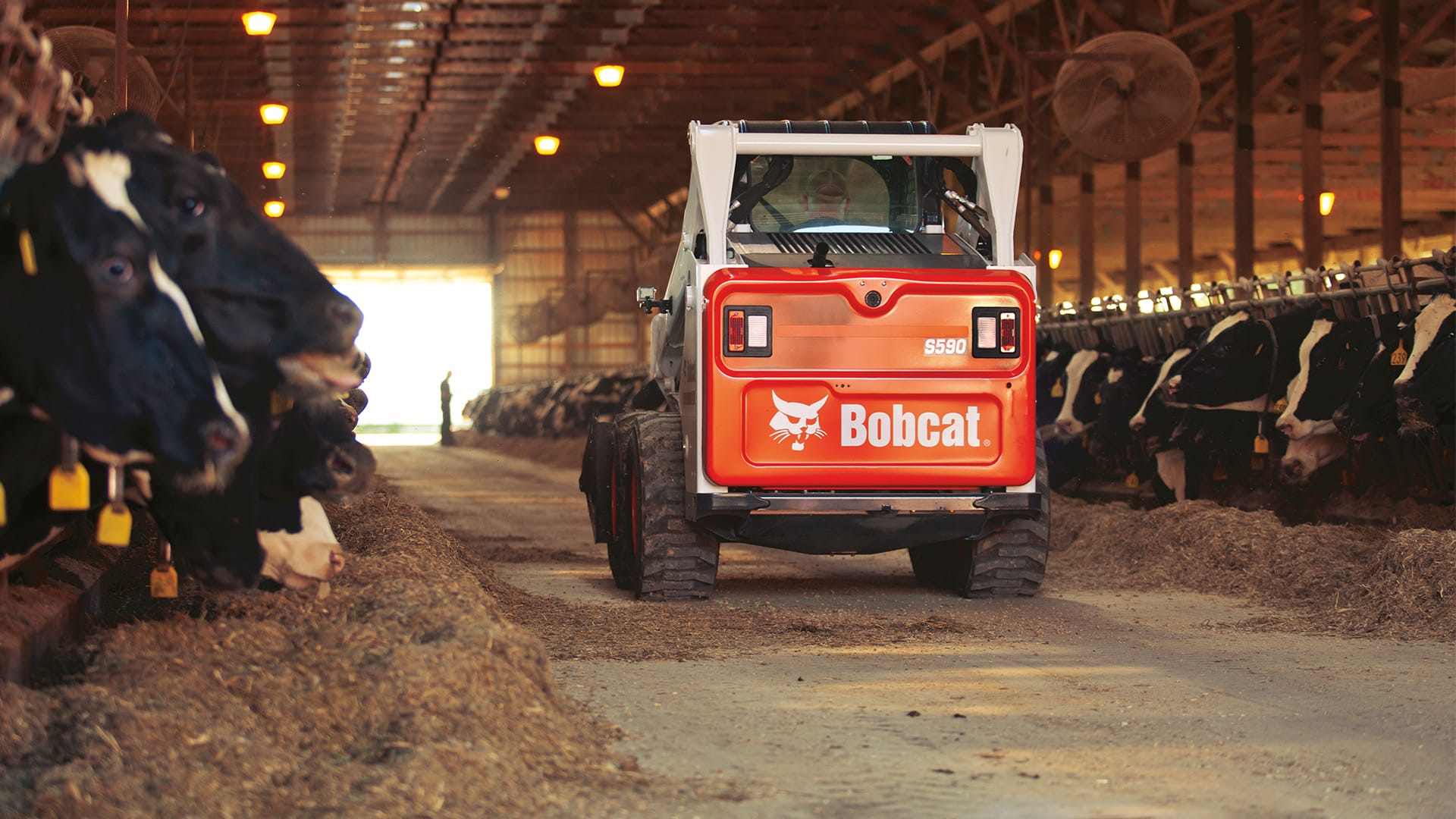

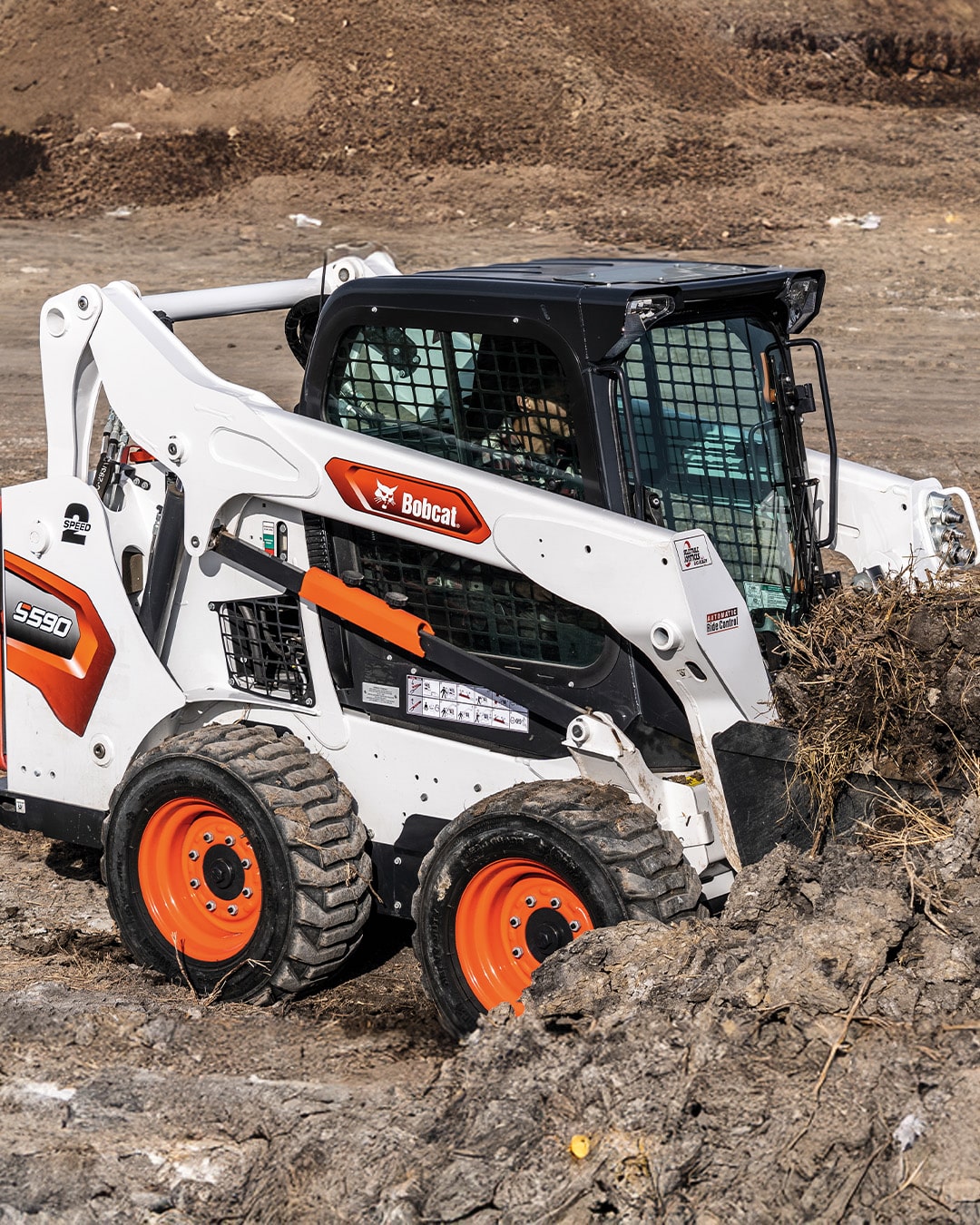

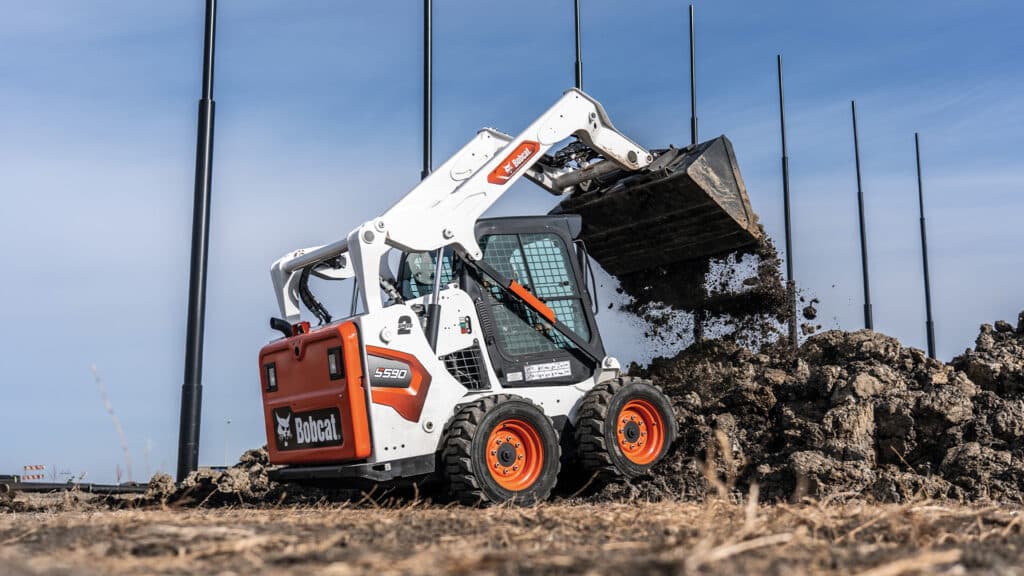

Bobcat S590 Skid Steer Loader
The Bobcat S590 skid steer loader gets the job done quickly and easily. Take on even the biggest projects, with leading visibility and premium operator comfort.
Handle any job with ease
Looking for a loader that can handle any job?
The Bobcat S590 skid steer loader is perfect for anyone who wants to get the job done quickly and easily. With its powerful hydraulic performance and leading visibility, you’ll be able to take on even the biggest projects with ease.
You deserve to have a machine that makes your life easier, and the Bobcat S590 loader does just that. It’s been designed with your comfort in mind, so you can work longer hours without feeling exhausted. Plus, it continuously outperforms the competition – so you know you’re getting the best value for your money.
The smart choice for construction workers
Bobcat engines satisfy Tier 4 requirements without the need of a diesel particulate filter, minimising downtime and maintenance expenses.
With the optional 2-Speed Travel, you can spend less time driving across a jobsite or between tasks. With this time-saving tool, you can move quicker and complete tasks more quickly.
Did you know you can control your Bobcat S590 with an iOS smartphone app? When help is scarce, this technology acts as an extra set of hands, allowing short two-person jobs to be done by a single operator. It also allows operators to avoid making several excursions in and out of the cab.
Bobcat S590 Skid Steer Loader Specifications
Overview
Tipping Load
1,958kg
Engine Power
49.2kW (66hp)
Operating Weight
3,054kg
Lift Height
3,023mm
ROC
952kg
Engine
Make / Model
Kubota V2607-T-DI TE36
Fuel
Diesel
Cooling
Liquid
Torque at 1800rpm (SAE J1995 Gross)
252.0Nm
Number of Cylinders
4
Displacement
2,615cc
Fuel Tank
93.7l
Performance
Tipping Load (ISO 14397-1)
1,958kg
Rated Operating Capacity (ISO 14397-1)
952kg
Pump Capacity
64l/min
Pump Capacity (with High Flow Option)
101l/min
System Relief at Quick Couplers
23.8 – 24.5MPa
Maximum Travel Speed (High Range – Option)
17.3km/h
Maximum Travel Speed (Low Range)
11.9km/h
Dimensions
Operating Height
3,901mm
Height with Operator Cab
1,972mm
Angle of Departure
24.2°
Ground Clearance
228mm
Wheelbase
1,082mm
Length without Attachment
2,657mm
Length with Standard Bucket
3,378mm
Rollback at Ground Position
30°
Dump Height with Standard Bucket
2,319mm
Height to Bucket Hinge Pin
3,023mm
Dump Reach at Maximum Height
818mm
Dump Angle at Maximum Height
42°
Rollback Fully Raised at Maximum Height
97°
Width Over Standard Bucket
1,727mm
Turning Radius with Standard Bucket
2,032mm
Track – Standard Tyres
1,374mm
Width Over Standard Tyres
1,524mm
Width Over Tyres – 10 x 16.5, 10-ply, Heavy Duty, Offset Rims
1,524mm
Features
10 x 16.5, 10-ply, Versatile Duty Tyres
Standard
Selectable Joystick Controls (SJC – R/C Ready)
Standard
High Flow Auxiliary Hydraulics
Standard
7-Pin Attachment Control
Standard
2 Speed
Standard
Bobcat Interlock Control System (BICS)
Standard
Parking Brake
Standard
Deluxe Operator Cab – Includes Interior Cab Foam, Side, Top and Rear Windows, Deluxe Wire Harness, Dome Light, and Electrical Power Port
Standard
Noise Reduction Kit
Standard
Operating Lights, Front and Rear
Standard
Deluxe Instrument Panel
Standard
Keyless Start with Password Capability
Standard
Suspension Seat
Standard
Seat Belt
Standard
Seat Bar
Standard
Hydraulic Bucket Positioning (including On/Off Switch)
Standard
Bob-Tach Frame
Standard
Cushioned Lift and Tilt Cylinders
Standard
Lift-Arm Support
Standard
Engine / Hydraulics System Shutdown
Standard
Sparks Arrestor Muffler
Standard
Automatically Activated Glow Plugs
Standard
Electrically Activated Proportional Front Auxiliary Hydraulics
Standard
Machine IQ (Telematic)
Standard
Manual
Standard
CE Certification
Standard
Warranty: 24 Months or 2,000 Hours (Whichever Occurs First)
Standard
Request a call back
talk with an expert!
A Bobcat specialist will confirm your pricing options about the Bobcat S590 Skid Steer Loader
The team at Delecca’s have a lifetime of experience with the Bobcat brand. In fact, we’re Australia’s longest serving supplier of Bobcat products – with over 40 years and counting!
Call us on 03 5430 3940, chat with us using the Facebook messenger icon, or fill in the form below.
