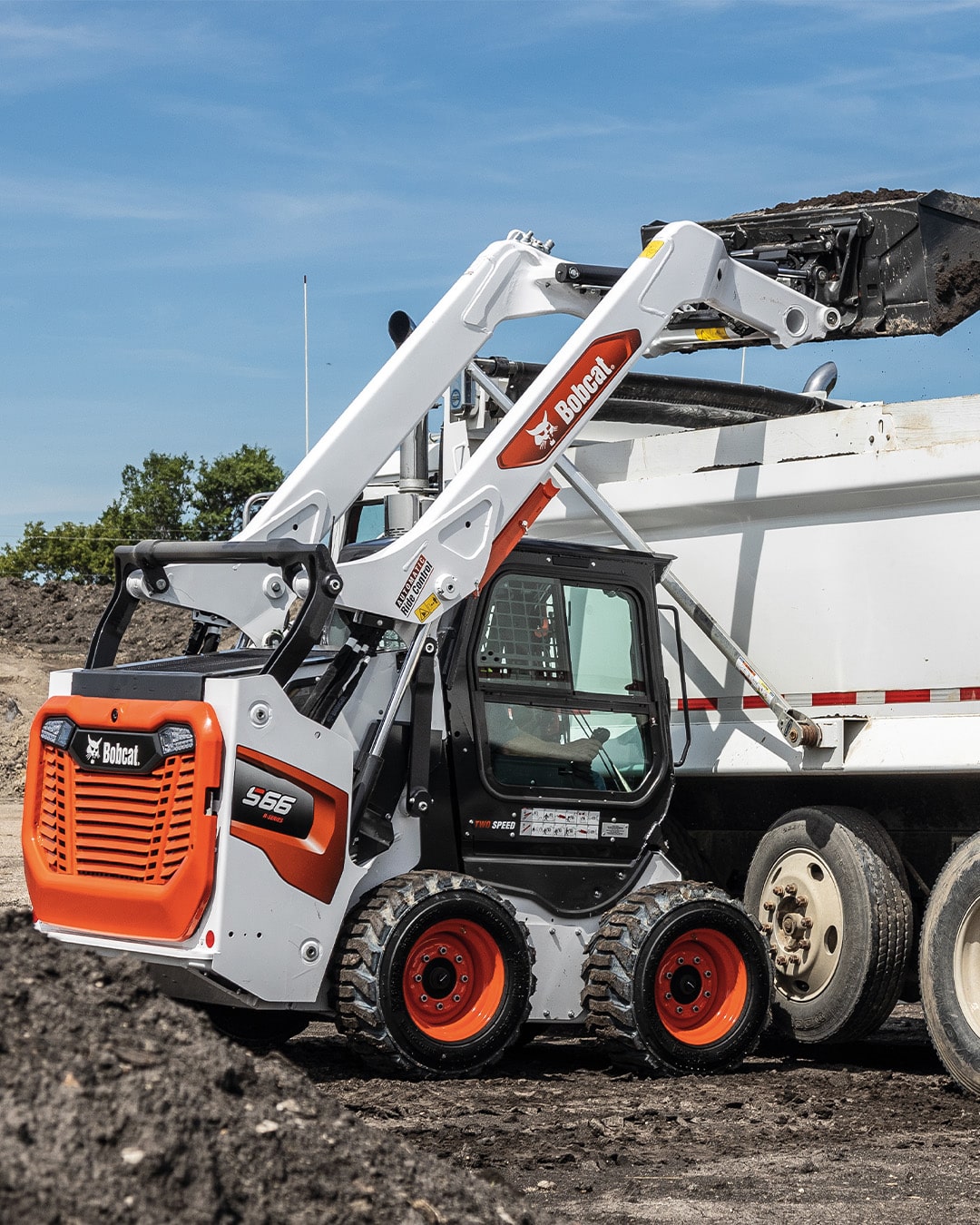

Bobcat S66 Skid Steer Loader
The Bobcat S66 skid steer loader has been engineered to take on your toughest jobs, even in small spaces. Enjoy durability and reliability you can count on.
Tackle your most challenging projects
The Bobcat S66 skid steer loader has been engineered to take on your toughest jobs, even in small spaces.
With increased lifting capabilities and premium comfort, this machine is perfect for the most challenging projects.
You’ll appreciate the leading visibility the Bobcat S66 provides, as well as the cast-steel lift arm construction that offers durability and reliability you can count on.
This is how work gets done
Packed with over 74 horsepower, the Bobcat S66 skid steer loader is a vertical-lift path machine with Two-Speed travel and Bobcat® Super Float tyres for precise turning, skidding, and mobility with little soil disturbance.
The robust lifting capabilities, rapid cycle times, ergonomic controls, and in-cab display featuring machine information and relevant performance statistics of the Bobcat S66 assist to enhance your workflow.
In addition, an inline engine and sturdy direct-drive system, cast-steel constructed lift arms, and an enhanced cooling system make even the most difficult workdays simpler. Add flexible loader accessories to tackle challenging chores and accomplish even more jobs.
Bobcat S66 Skid Steer Loader Specifications
Overview
Tipping Load
2,359kg
Engine Power
55.1kW (74hp)
Operating Weight
3,245kg
Lift Height
3,048mm
ROC
1,088kg
Engine
Make / Model
Bobcat V2 2.4L
Fuel
Diesel
Cooling
Liquid
Power at 2600rpm
55.1kW (74hp)
Number of Cylinders
4
Displacement
2,400cc
Fuel Tank
93.7l
Performance
Tipping Load (ISO 14397-1)
2,359kg
Rated Operating Capacity (ISO 14397-1)
1,088kg
Pump Capacity
67l/min
Pump Capacity (with High Flow Option)
101l/min
System Relief at Quick Couplers
23.8 – 24.5MPa
Maximum Travel Speed (High Range – Option)
17km/h
Maximum Travel Speed (Low Range)
11.9km/h
Dimensions
Operating Height
3,910mm
Height with Operator Cab
2,044mm
Angle of Departure
25°
Ground Clearance
214mm
Wheelbase
1,132mm
Length without Attachment
2,717mm
Length with Standard Bucket
3,427mm
Rollback at Ground Position
30°
Dump Height with Standard Bucket
2,396mm
Height to Bucket Hinge Pin
3,048mm
Dump Reach at Maximum Height
868mm
Dump Angle at Maximum Height
37°
Rollback Fully Raised at Maximum Height
94°
Width Over Standard Bucket
1,728mm
Turning Radius with Standard Bucket
2,034mm
Track – Standard Tyres
1,407mm
Width Over Standard Tyres
1,550mm
Features
10 x 16.5, 10-ply, Heavy Duty Tyres
Standard
3 Point Seat Belt
Standard
5″ Deluxe Instumentation (Radio Ready)
Standard
Adjustable Suspension Seat
Standard
Auxiliary Hydraulics: Variable Flow / Maximum Flow
Standard
Backup Alarm
Standard
Bobcat Interlock Control System (BICS)
Standard
Bob-Tach Attachment System
Standard
Deluxe Pressurised Cab with HVAC
Standard
Dual Direciton Bucket Positioning (including On/Off Switch)
Standard
Engine / Hydraulics System Shutdown
Standard
High Flow Hydraulics
Standard
Horn
Standard
Key Start
Standard
LED Working Lights, Front and Rear
Standard
Lift-Arm Support
Standard
Manual
Standard
Machine IQ (Telematic)
Standard
Parking Brake
Standard
Seat Bar
Standard
Selectable Joystick Controls (SJC)
Standard
Sparks Arrestor Muffler
Standard
Two Speed Travel
Standard
Warranty: 24 Months or 2,000 Hours (Whichever Occurs First)
Standard
