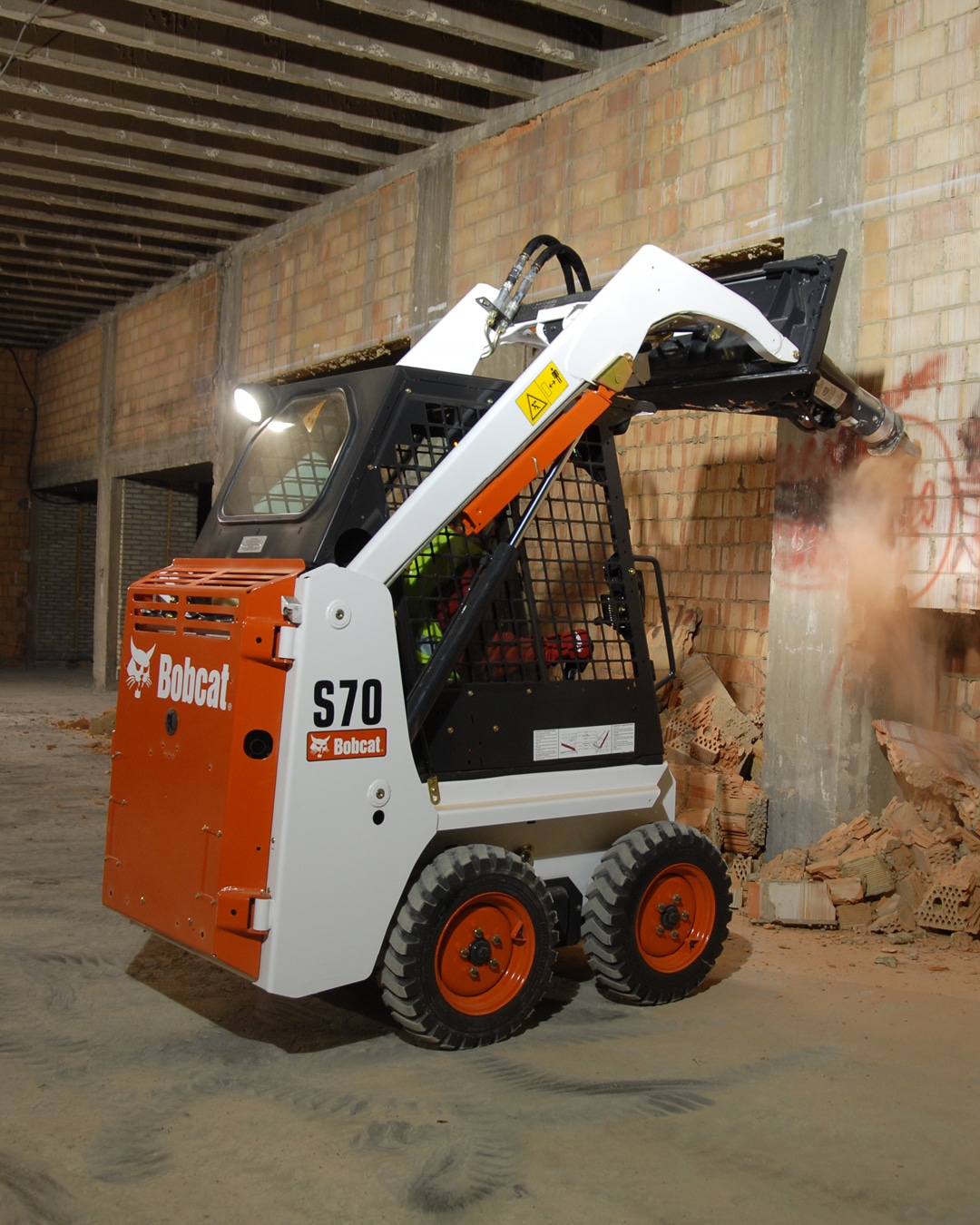

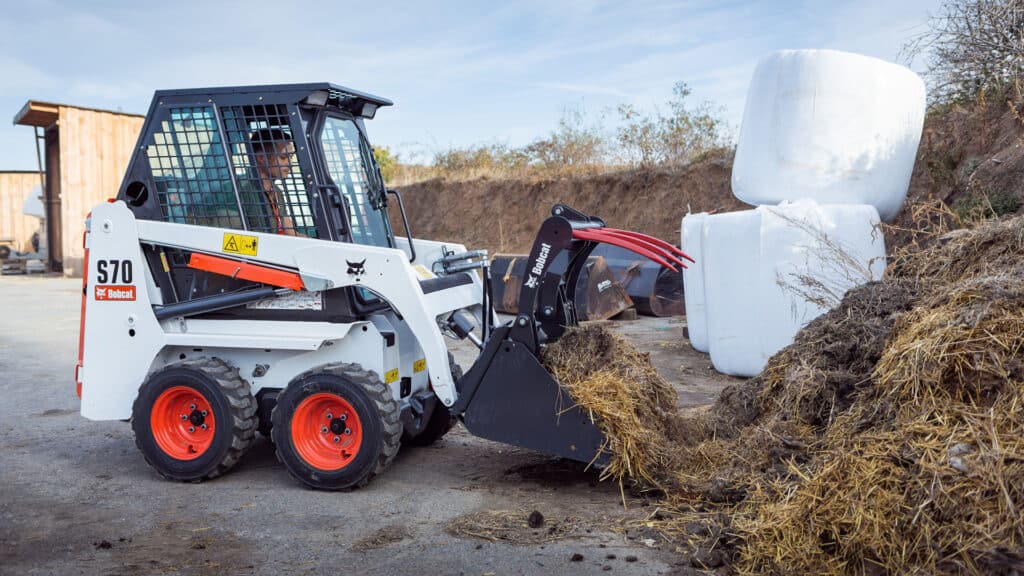

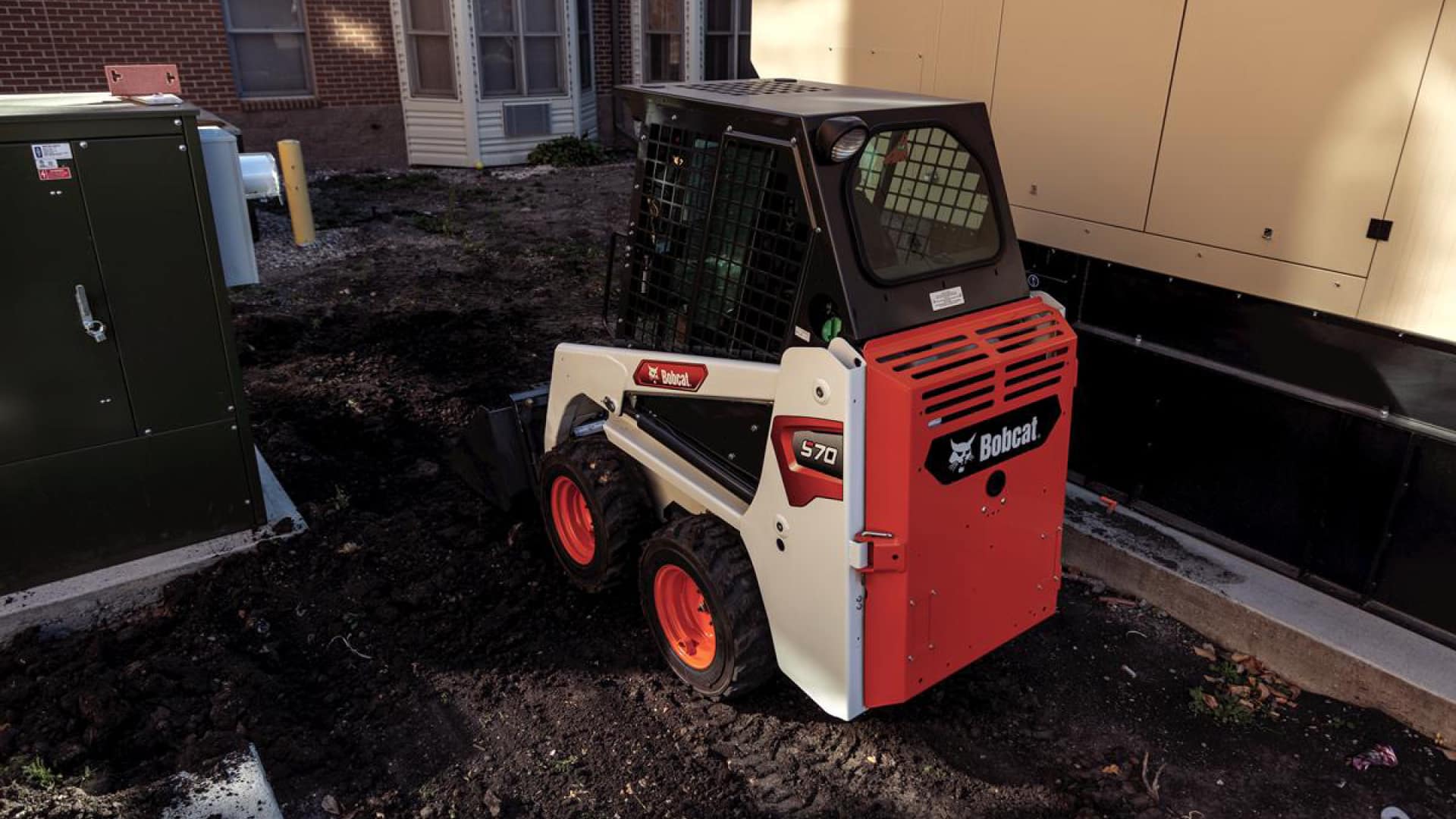

Bobcat S70 Skid Steer Loader
The Bobcat S70 skid steer loader can navigate narrow doorways, alleys and gates. Clear low ceilings without sacrificing any control or ability in tight spaces!
tough yet versatile
Looking for a powerful machine that can fit in tight spots?
The Bobcat S70 skid steer loader is the perfect machine for the job. It’s small enough to get in tight spots, but strong enough to handle any task.
With this small but strong machine, you’ll be able to tackle any job. Its nimble shape allows it to readily go through narrow entrances and hallways, short walkways and gates, and under low ceilings. When the work is too much for a shovel or the location is too tiny for a larger equipment, this is the loader to use.
heading
copy
Play Video about Steve Pilcher Landscapes
Bobcat S70 Skid Steer Loader Specifications
Overview
Tipping Load
686kg
Engine Power
17.5kW (23.5hp)
Operating Weight
1,267kg
Lift Height
2,399mm
ROC
344kg
Engine
Make / Model
Kubota D1005-E2B
Fuel
Diesel
Cooling
Liquid
Power at 2400rpm
17.5kW (23.5hp)
Torque at 1245rpm (SAE J1995 Gross)
62.8Nm
Number of Cylinders
3
Displacement
1,001cm³
Fuel Tank
24.6l
Performance
Tipping Load (ISO 14397-1)
686kg
Rated Operating Capacity (ISO 14397-1)
344kg
Pump Capacity
37.1l/min
System Relief at Quick Couplers
20.7MPa
Maximum Travel Speed (Low Range)
9.8km/h
Dimensions
Operatoring Height
3,051mm
Height with Operator Cab
1,813mm
Angle of Departure
25°
Ground Clearance
141mm
Wheelbase
722mm
Length without Attachment
1,918mm
Length with Standard Bucket
2,472mm
Rollback at Ground Position
22°
Dump Height with Standard Bucket
1,934mm
Height to Bucket Hinge Pin
2,400mm
Dump Reach at Maximum Height
400mm
Dump Angle at Maximum Height
34°
Rollback Fully Raised at Maximum Height
97°
Width Over Standard Bucket
914mm
Turning Radius with Standard Bucket
1,557mm
Track – Standard Tyres
752mm
Width Over Standard Tyres
1100mm
Features
Cab Enclosure
N/A
Sound Option
N/A
Cab Heater
N/A
Operating Lights
Standard
Parking Brake
Standard
Radio
N/A
Rear Window
Standard
Top Window
N/A
Lift-Arm Support
Standard
Seat Belt
Standard
Suspension Seat
Standard
Two Speed Travel
N/A
Deluxe Instrumentation
N/A
Engine Shutdown
N/A
Hydraulic Bucket Positioning
Optional
Auxiliary Hydraulics
Standard
Spark Arrestor Muffler
Standard
Bob-Tach Attachment System
Standard
Power Bob-Tach
N/A
Horn
Standard
