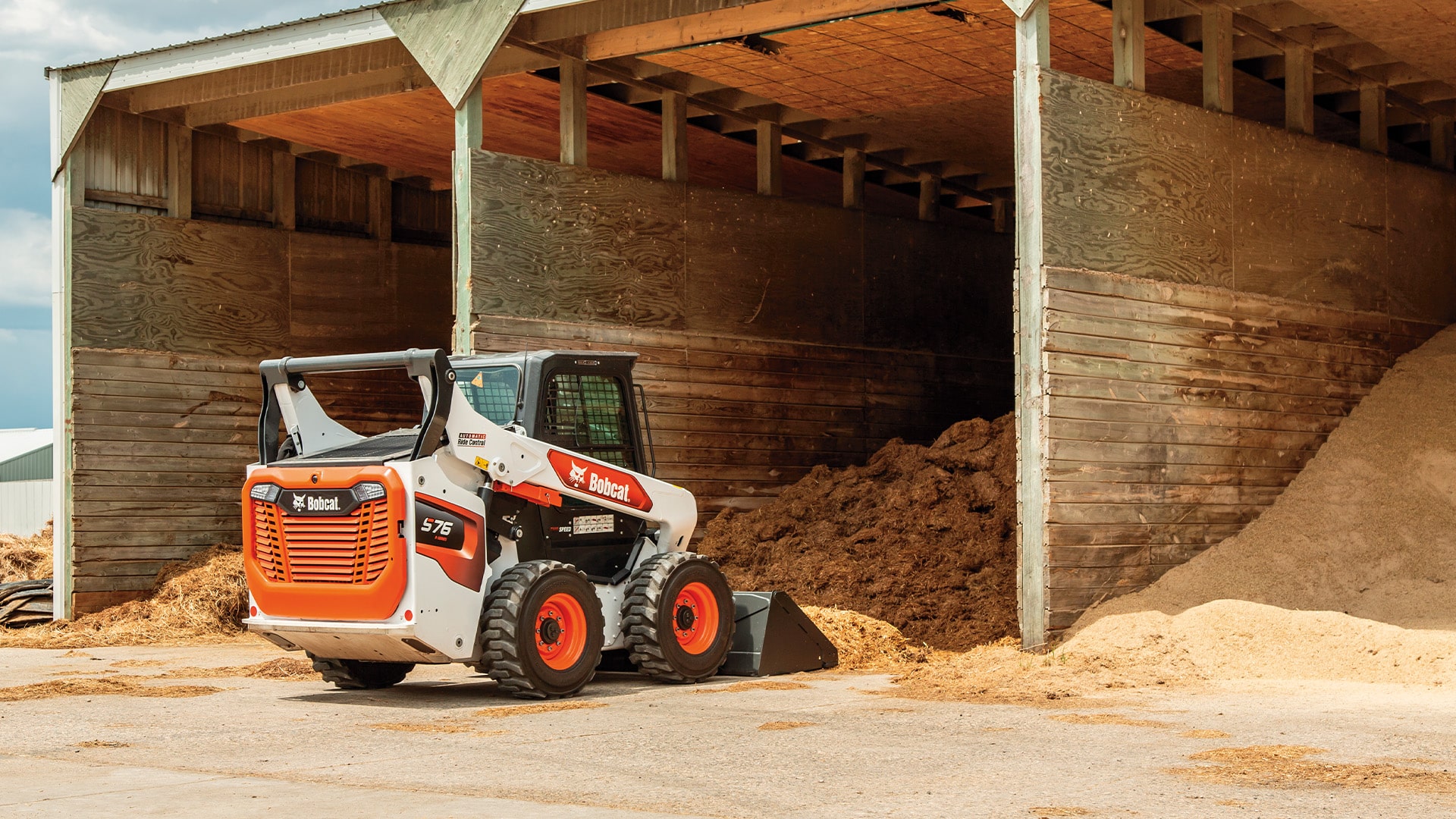

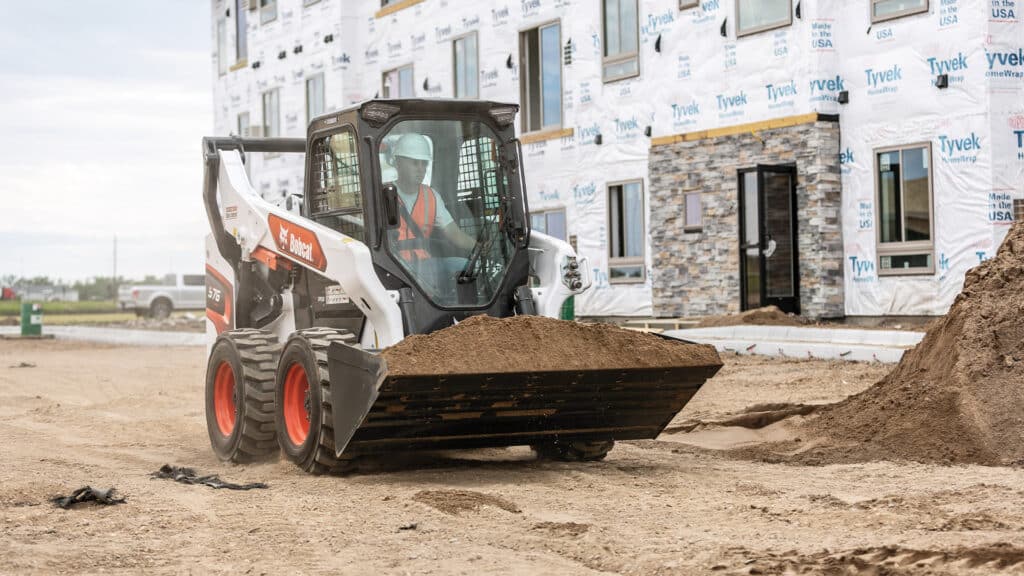

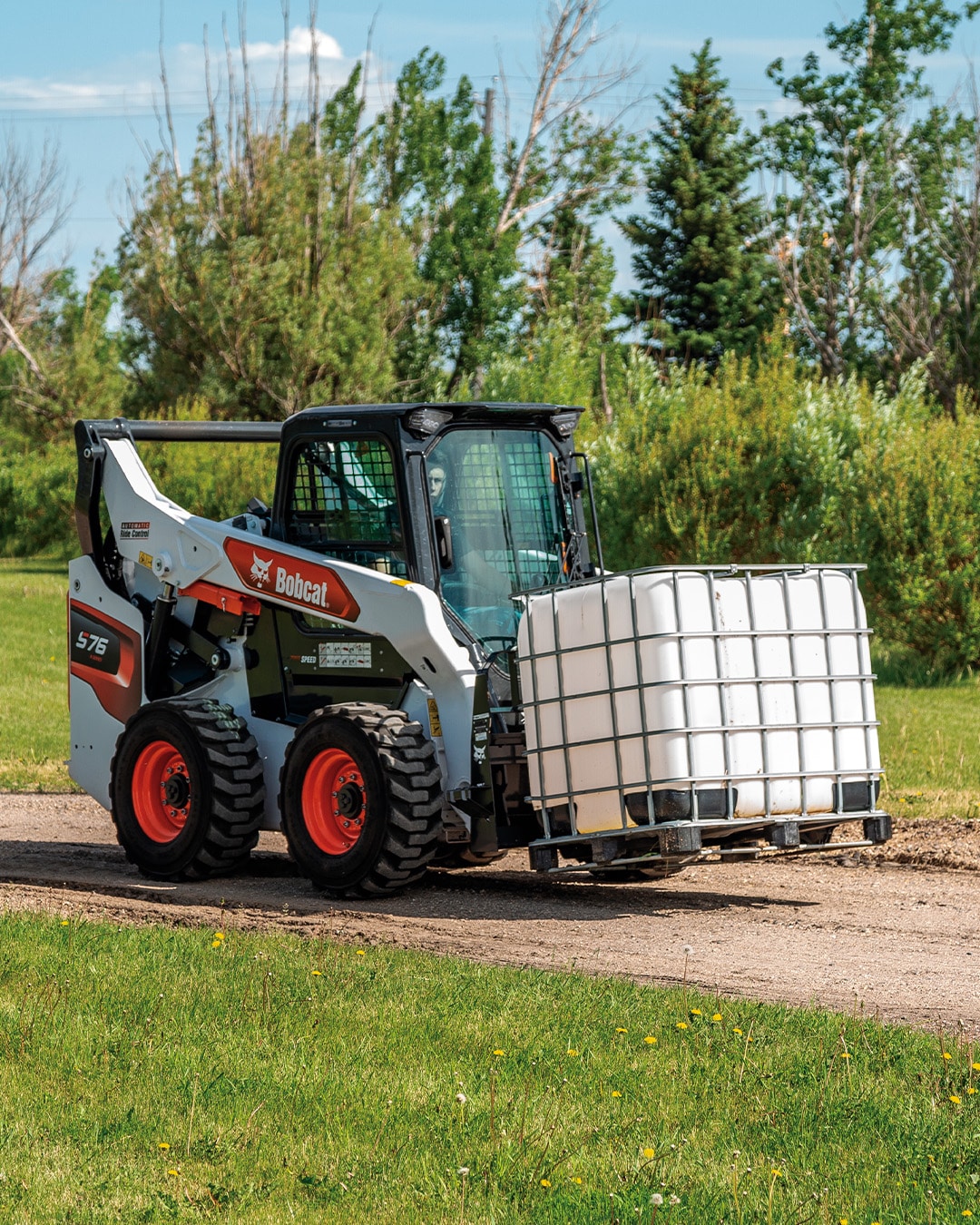

Bobcat S76 Skid Steer Loader
The Bobcat S76 skid steer loader helps accomplish more with one machine. Work with strong breakout forces, quick cycle times and improved lifting capabilities.
Looking for a loader that can help you take on tougher projects?
The Bobcat S76 skid steer loader is designed to help you accomplish more with one machine. With increased lifting capabilities and operator-friendly controls, this loader is perfect for anyone who wants to get the job done quickly and easily.
A new level of comfort and performance
The vertical-lift-path Bobcat S76 skid-steer loader has strong breakout forces, quick cycle times, and improved lifting capabilities, including greater capacity and height.
Extremely agile, the Bobcat S76 has excellent turning and skidding that is suitable for difficult work in small spaces.
An inline engine and direct-drive system, cast-steel lift arms, and increased cooling performance are among the machine upgrades in the R-Series.
A spacious cab, ergonomic controls, optional automated heat and air conditioning, and other features provide a new level of operator comfort.
Bobcat S76 Skid Steer Loader Specifications
Overview
Tipping Load
2,722kg
Engine Power
55.1kW (74hp)
Operating Weight
3,907kg
Lift Height
3,258mm
ROC
1,350kg
Engine
Make / Model
Bobcat V2 2.4L
Fuel
Diesel
Cooling
Liquid
Power at 2600rpm
55.1kW (74hp)
Number of Cylinders
4
Displacement
2,400cc
Fuel Tank
120l
Performance
Tipping Load (ISO 14397-1)
2,722kg
Rated Operating Capacity (ISO 14397-1)
1,350kg
Pump Capacity
90l/min
Pump Capacity (with High Flow Option)
115l/min
System Relief at Quick Couplers
23.8 – 24.5MPa
Maximum Travel Speed (High Range – Option)
18.9km/h
Maximum Travel Speed (Low Range)
11km/h
Dimensions
Operating Height
4,252mm
Height with Operator Cab
2,077mm
Angle of Departure
27°
Ground Clearance
235mm
Wheelbase
1,226mm
Length without Attachment
2,893mm
Length with Standard Bucket
3,736mm
Rollback at Ground Position
30°
Dump Height with Standard Bucket
2,526mm
Height to Bucket Hinge Pin
3,259mm
Dump Reach at Maximum Height
949mm
Dump Angle at Maximum Height
37°
Rollback Fully Raised at Maximum Height
94°
Width Over Standard Bucket
1,880mm
Turning Radius with Standard Bucket
2,228mm
Track – Standard Tyres
1,584mm
Width Over Standard Tyres
1,830mm
Features
12 x 16.5, 10-ply, Heavy Duty Tyres
Standard
3 Point Seat Belt
Standard
5″ Deluxe Instrumentation (Radio Ready)
Standard
Auxiliary Hydraulics: Variable Flow / Maximum Flow
Standard
High-back Adjustable Suspension Seat
Standard
Backup Alarm
Standard
Bobcat Interlock Control System (BICS)
Standard
Bob-Tach Attachment System
Standard
Deluxe Pressurised Cab with HVAC
Standard
Engine / Hydraulics System Shutdown
Standard
High Flow Hydraulics
Standard
Horn
Standard
Key Start
Standard
LED Working Lights, Front and Rear
Standard
Lift Arm Support
Standard
Machine IQ (Telematic)
Standard
Manual
Standard
Parking Brake
Standard
Selectable Joystick Controls (SJC)
Standard
Spark Arrestor Muffler
Standard
Two Speed Travel
Standard
Warranty: 24 Months or 2,000 Hours (Whichever Occurs First)
Standard
