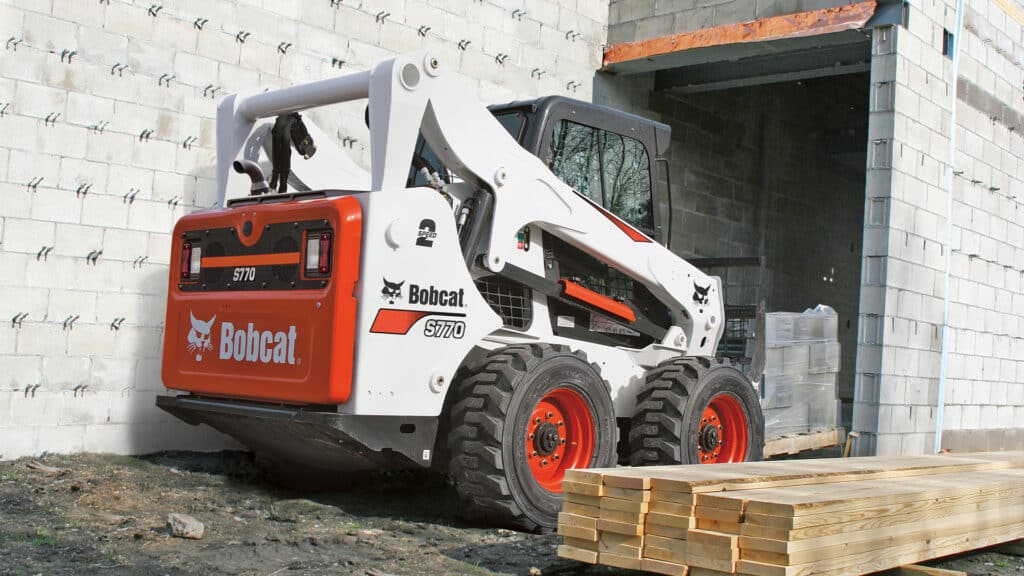

Bobcat S770 Skid Steer Loader
The Bobcat S770 skid steer loader has been designed with your comfort in mind. It offers plenty of headroom and legroom, as well as easy-to-use controls.
Handle the big jobs with style
Handle the big
jobs with style
Class leading comfort and performance
Looking for a powerful skid steer loader that can handle big jobs?
The Bobcat S770 skid steer loader is perfect for those who need extra power. With attachments that need more muscle, the S770 can take on any job.
You’ll appreciate the vertical lift path which gives you more reach at full lift height without any decrease in performance. This machine is built to get the job done quickly and easily.
The powerful skid steer loader that is comfortable to operate
The Bobcat S770 skid steer loader has been designed with your comfort in mind. It offers plenty of headroom and legroom, as well as easy-to-use controls. You’ll be able to get the job done quickly and easily.
With a lifting capacity of over 1,500 kilograms and superior lift arms, the Bobcat S770 can handle even the most challenging jobs. Plus, its panoramic serviceability makes it easy to keep this machine in top condition.
Bobcat S770 Skid Steer Loader Specifications
Overview
Tipping Load
3,137kg
Engine Power
68.6kW (92hp)
Operating Weight
4,161kg
Lift Height
3,353mm
ROC
1,519.6kg
Engine
Make / Model
Kubota V3800 – Turbo Tier III
Fuel
Diesel
Cooling
Liquid
Power at 2400rpm (ISO 14396 Gross)
68.6kW (92hp)
Number of Cylinders
4
Displacement
3,769cc
Fuel Tank
124.2l
Performance
Tipping Load (ISO 14397-1)
3,137kg
Rated Operating Capacity (ISO 14397-1)
1,519.6kg
Pump Capacity
87.1l/min
Pump Capacity (with High Flow Option)
138.15l/min
System Relief at Quick Couplers
23.8 – 24.5MPa
Maximum Travel Speed (High Range – Option)
19.8km/h
Maximum Travel Speed (Low Range)
11.4km/h
Dimensions
Operating Height
4,232mm
Height with Operator Cab
2,065mm
Angle of Departure
25°
Ground Clearance
207mm
Wheelbase
1,227mm
Length without Attachment
2,903mm
Length with Standard Bucket
3,597mm
Rollback at Ground Position
30°
Dump Height with Standard Bucket
2,649mm
Height to Bucket Hinge Pin
3,353mm
Dump Reach at Maximum Height
800mm
Dump Angle at Maximum Height
42°
Rollback Fully Raised at Maximum Height
98°
Width Over Standard Bucket
1,880mm
Turning Radius with Standard Bucket
2,179mm
Track – Standard Tyres
1,507mm
Width Over Standard Tyres
1,831mm
Features
12 x 16.5, 12-ply, Heavy Duty Tyres
Standard
Automatically Activated Glow Plugs
Standard
Bob-Tach Frame
Standard
Bobcat Interlock Control System (BICS)
Standard
CE Certification
Standard
Cushioned Lift and Tilt Cylinders
Standard
Deluxe Operator Cab with Windows
Standard
Electrically Activated Proportional Front Auxiliary Hydraulics
Standard
Engine / Hydraulics System Shutdown
Standard
High-back Adjustable Suspension Seat
Standard
Hydraulic Bucket Positioning System (including On/Off Switch
Standard
Lift-Arm Support
Standard
Manual
Standard
Parking Brake
Standard
Seat Bar
Standard
Turbo-Charger with Approved Spark Arrestor
Standard
Two Speed Travel
Standard
Warranty: 24 Months or 2,000 Hours (Whichever Occurs First)
Standard
Work Lights, Front and Rear
Standard
