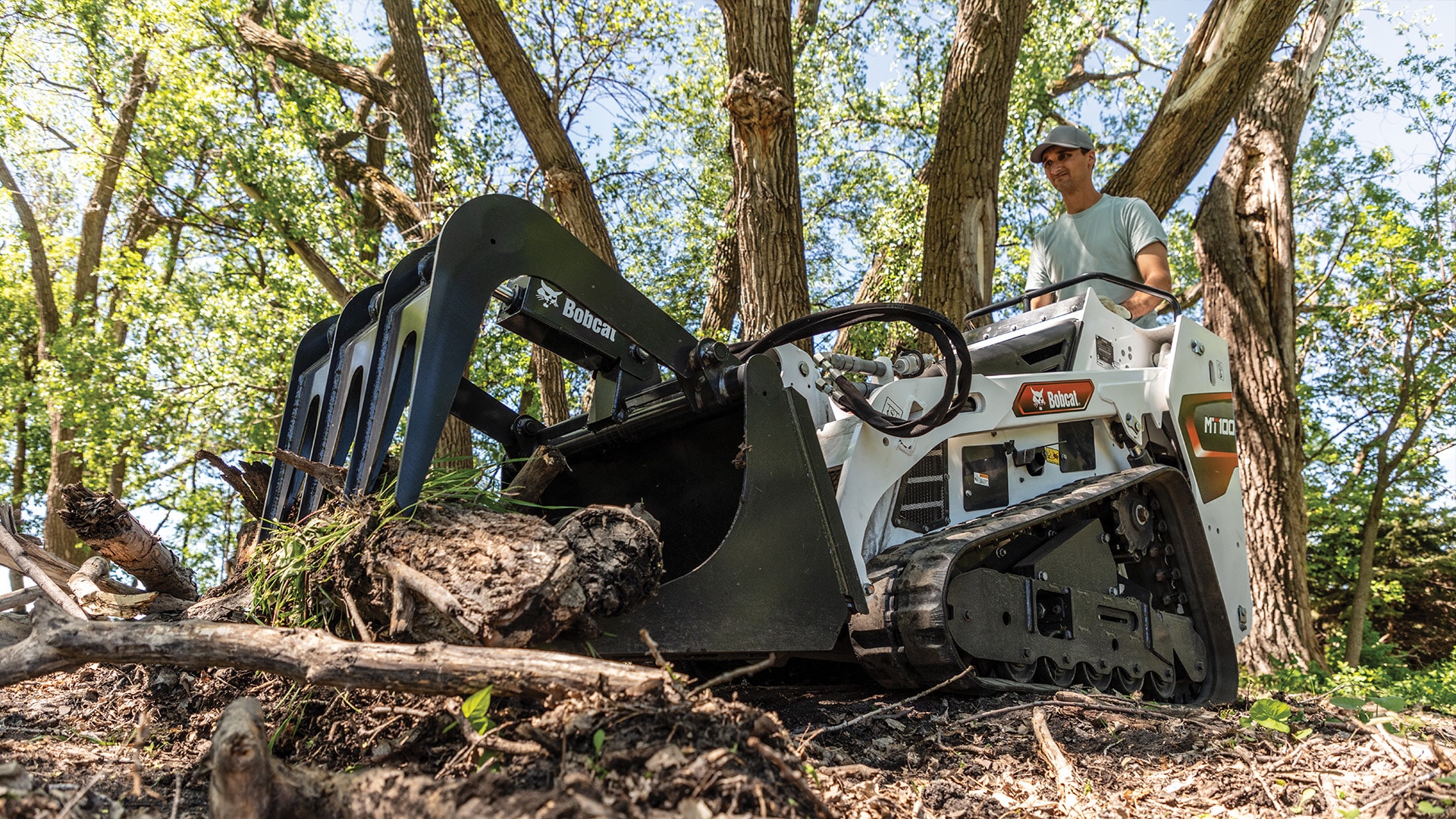

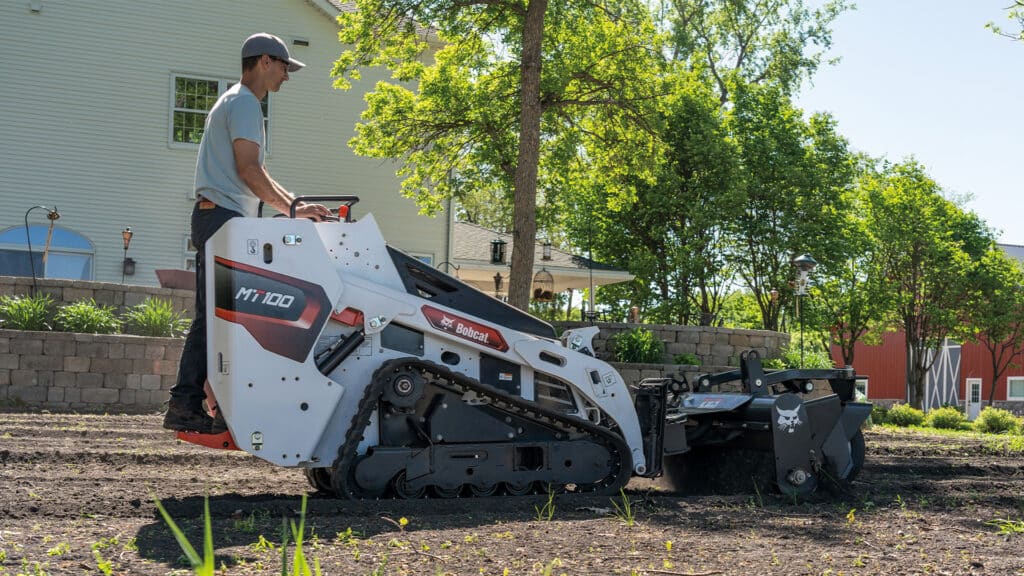

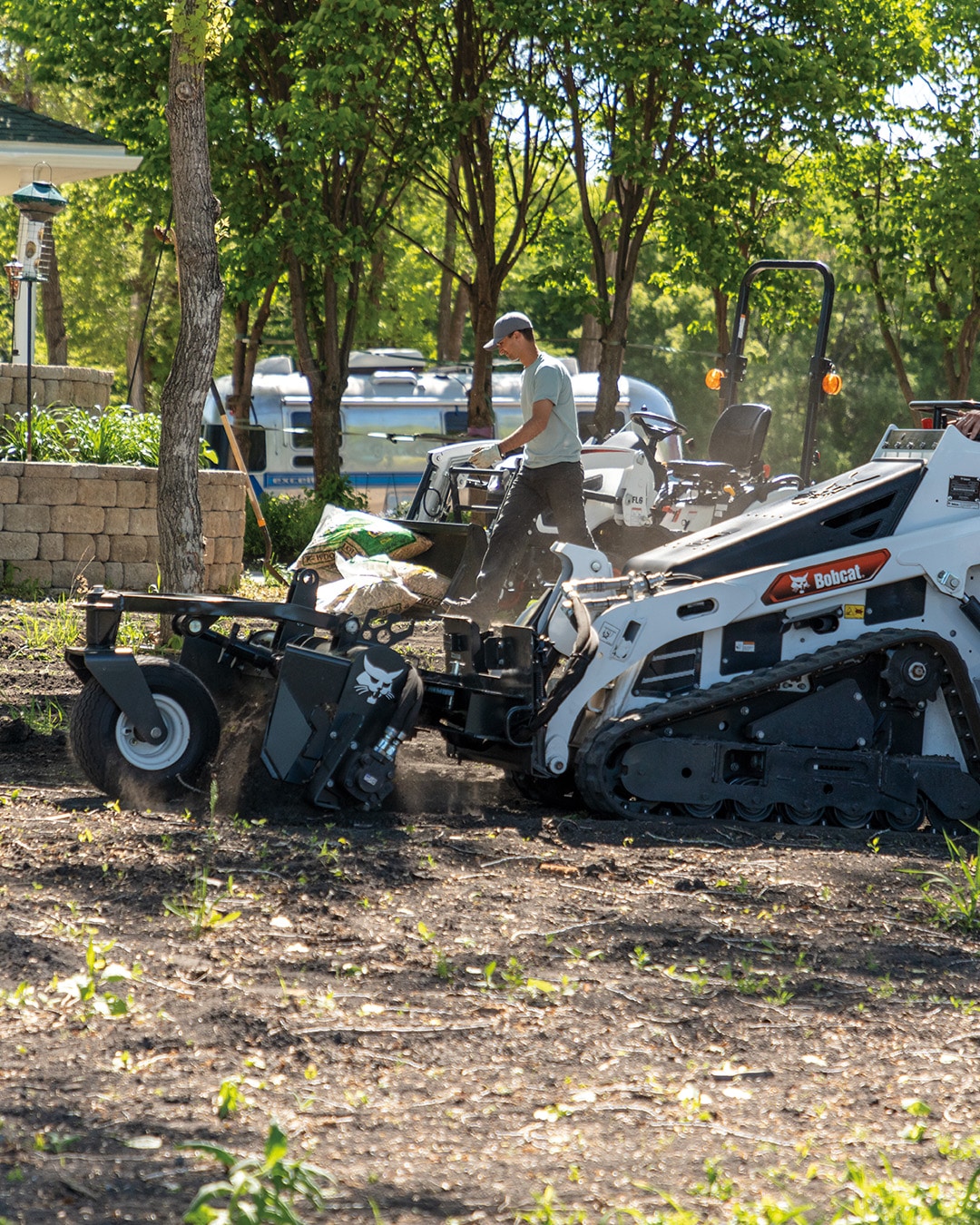

Bobcat MT100 Track Loader
The Bobcat MT100 mini track loader is perfect for working in tight spaces. With its small size, it can fit through gates, doorways and other narrow spaces with ease.
Big things from a small package
Big things from
a small package
Are you a landscaper looking for a compact and versatile mini track loader?
The Bobcat MT100 mini track loader is perfect for tight spaces. With its small size, it can fit through gates, doorways and other narrow spaces with ease. And with a rated operating capacity of 453kg and impressive lift height, this machine can handle even the most challenging landscaping jobsites.
You’ll be able to take on any task with ease when you roll up to the worksite with the Bobcat MT100 mini track loader. From moving soil and gravel to lifting heavy materials, this machine can do it all.
The mini digger that can handle the big jobs
The Bobcat MT100 mini track loader is perfect for manoeuvring in close quarters and has increased lifting capacities. With a variety of attachments available, this machine’s capabilities are endless!
You’ll be able to take on any job with ease with the Bobcat MT100. It’s the perfect mini digger for anyone who wants a machine that is both manoeuvrable and powerful.
Bobcat MT100 Track Loader Specifications
Overview
Tipping Load
1,290kg
Engine Power
18.5kW (25hp)
Operating Weight
1,537kg
Lift Height
2,056mm
ROC
453kg
Engine
Make / Model
Kubota / D902-E4B-BC-1
Fuel
Diesel
Cooling
Liquid
Power at 3600RPM (ISO 9249)
18.5kW (25hp)
Torque at 2600rpm (SAE J9249)
54.20Nm
Number of Cylinders
3
Displacement
898cc
Fuel Tank
26.50l
Performance
Tipping Load (ISO 14397-1)
1,290kg
Rated Operating Capacity
453kg
Pump Capacity
45.4l
System Relief at Quick Couplers
199.95bar
Maximum Travel Speed
6.4km/h
Dimensions
Operating Height
2,676mm
Carry Positions
168mm
Angle of Departure
23.80°
Ground Clearance
205mm
Ground Contact Length
1,032mm
Length without Attachment
2,146mm
Length with Standard Bucket
2,699mm
Rollback at Ground Position
22.7°
Dump Height with Standard Bucket
1,265mm
Height
1,387mm
Height to Bucket Hinge Pin
2,056mm
Dump Reach at Maximum Height
472mm
Dump Angle at Maximum Height
48.7°
Rollback Fully Raised at Maximum Height
83.3°
Width Over Standard Bucket
915mm
Turning Radius with Standard Bucket
1,455mm
Track
724mm
Width Over Tracks
904mm
Features
Hydraulic Drive Train
Standard
Parking Brake
Standard
Built-in Tie Down and Crane / Lift Locations
Standard
Instrumentation
Standard
Tracks – Rubber – 180mm
Standard
Bob-Tach Frame
Standard
Neutral Start Interlocks
Standard
Lift Arm Support
Standard
Lift Arm Lockout with Manual Bypass
Standard
Spark Arrester Muffler
Standard
Auxiliary Hydraulics
Standard
Tilt Lockout
Standard
Reverse Travel Stop Panel
Standard
CE Certification
Standard
Warranty – 24 Months or 2,000 Hours (Whichever Occurs First)
Standard
