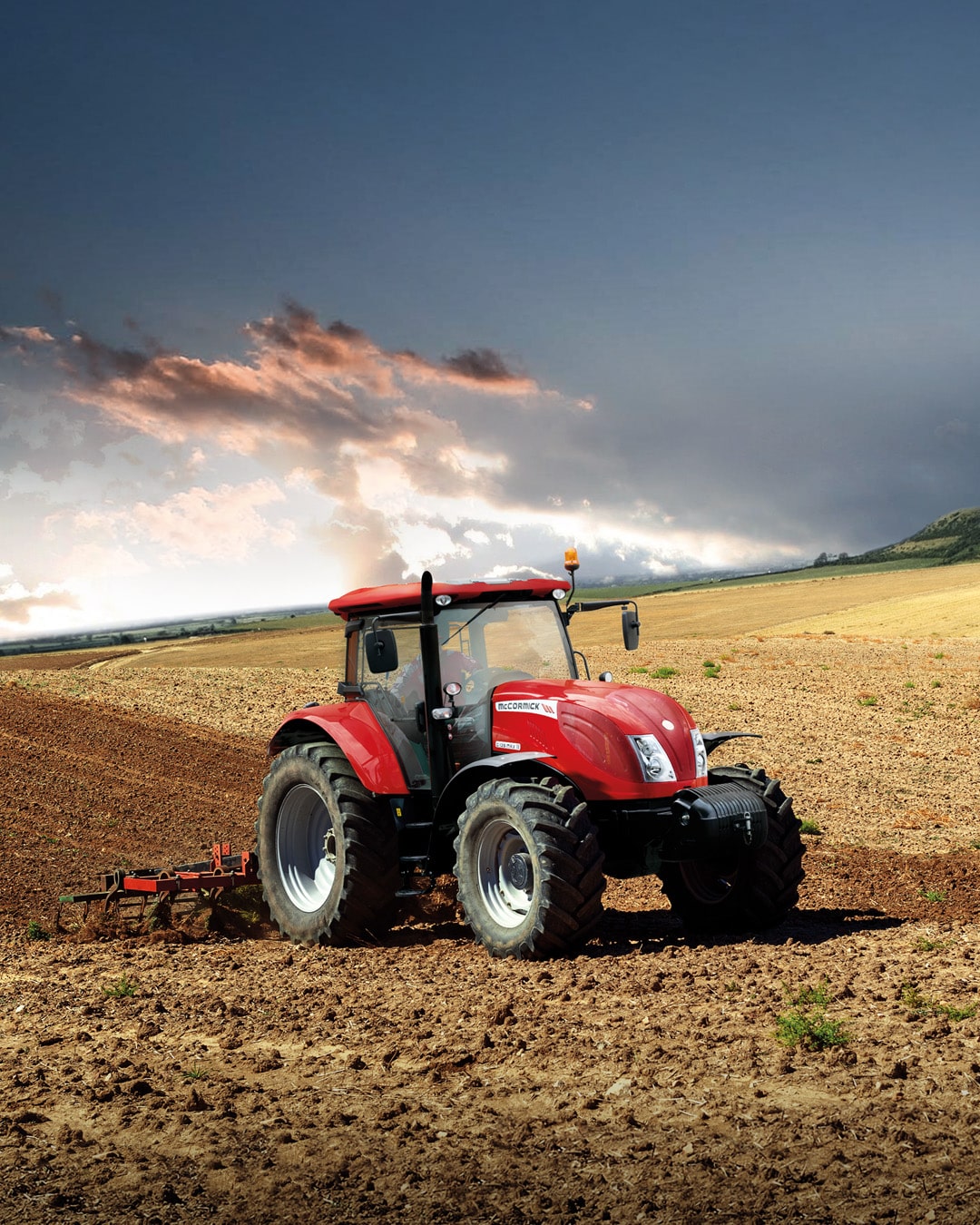

McCORMICK G-MAX CAB TRACTOR
The McCormick G-MAX cab tractor is a powerful machine that can handle any job you throw at it.
The perfect view in all directions
The perfect view
in all directions
Following a thorough redesign, the new McCormick G-MAX cab tractor is now available.
Updates include a new, luxurious four-post cab with spacious glass, a fully adjustable spring seat, hydraulic steering, and ergonomically placed controls – all which contribute to your ability to operate in utmost comfort.
The hood’s sloping line, which reflects the McCormick family’s design, offers a clear vision in all directions, which enhances manoeuvrability and driving comfort.
Looking for a powerful tractor that can handle any job?
The McCormick G-MAX is the perfect choice. It’s available in two types of transmissions, so you can choose the one that fits your needs. Plus, it has a PTO with wet multi-disc clutch, so you can power all your farm equipment.
You’ll love the creeper mode on this tractor – it makes it easy to move slowly and smoothly when you need to get precision work done. And with a wide range of forward and reverse gears, you’ll be able to tackle any terrain.
McCORMICK G-MAX SPECIFICATIONS
standard
G-MAX 135
G-MAX 165
Engine
135 hp (98 kW) FPT engine, Tier 3 TDI 6 cylinder 6,728cc, side lateral vertical exhaust, dust ejector, heavy duty radiator for tropical climate, engine cooling system without viscous fan drive for tropical climates
160 hp (116 kW) FPT engine, Tier 3 TDI 6 cylinder 6,728cc, side lateral vertical exhaust, dust ejector, heavy duty radiator for tropical climate, engine cooling system without viscous fan drive for tropical climates
Transmission
(54 + 18) with power-shift and shuttle – 40km/h, with three speeds under load and reverse power shuttle, hydraulic 4WD engagement Spring-On / Pressure-Off, 4WD-Hydralock front axle with brakes, rear electrohydraulic, multi-disc differential lock, rear axle: flanged type
(54 + 18) with power-shift and shuttle – 40km/h, with three speeds under load and reverse power shuttle, hydraulic 4WD engagement Spring-On / Pressure-Off, 4WD-Hydralock front axle with brakes, rear electrohydraulic, multi-disc differential lock, rear axle: flanged type
PTO
Hydraulic PTO 540 / 1,000 rpm, without groundspeed
Hydraulic PTO 540 / 1,000 rpm, without groundspeed
Hydraulics
Load sensing variable displacement hydraulic pump (110l/min), five rear spool valves double acting (one standard with F/D plus one float plus one kickout plus two standard) with joystick
Load sensing variable displacement hydraulic pump (110l/min), five rear spool valves double acting (one standard with F/D plus one float plus one kickout plus two standard) with joystick
Three Point Linkage
Three-point linkage, category 2 / 3 with quick attach and mechanical top link, electronic lift control, mechanical levelling rod, two external hydraulic rams – 90mm
Three-point linkage, category 2 / 3 with quick attach and mechanical top link, electronic lift control, mechanical levelling rod, two external hydraulic rams – 100mm
Rear Hitch
Swinging drawbar category “A”
Swinging drawbar category “A”
Operator Area
Cab suspended on silent-blocks, deluxe air suspension swivel seat with armrests, safety belts, headrest, instructor seat, air conditioning system, less sunroof, two front and two rear mounted additional work lights
Cab suspended on silent-blocks, deluxe air suspension swivel seat with armrests, safety belts, headrest, instructor seat, air conditioning system, less sunroof, two front and two rear mounted additional work lights
Tyres
420/70R28 Front – 520/70R38 Rear
Standard rear fenders
Rear fender extensions
Swivel front fenders
540/65R28 Front – 650/65R38 Rear
Standard rear fenders
Rear fender extensions
Swivel front fenders
Weights and Dimensions
Total Length with Ballast: 5,145mm
Ground Clearance: 520mm
Total Weight without Ballast: 5,800kg
Hydraulic Flow: 110l/min
Hydraulic Lift: 7,000kg
Total Length with Ballast: 5,450mm
Ground Clearance: 550mm
Total Weight without Ballast: 6,250kg
Hydraulic Flow: 110l/min
Hydraulic Lift: 8,400kg
Miscellaneous
Additional PTO shaft six spline 1” 3/8, beacon light
Additional PTO shaft six spline 1” 3/8, beacon light
