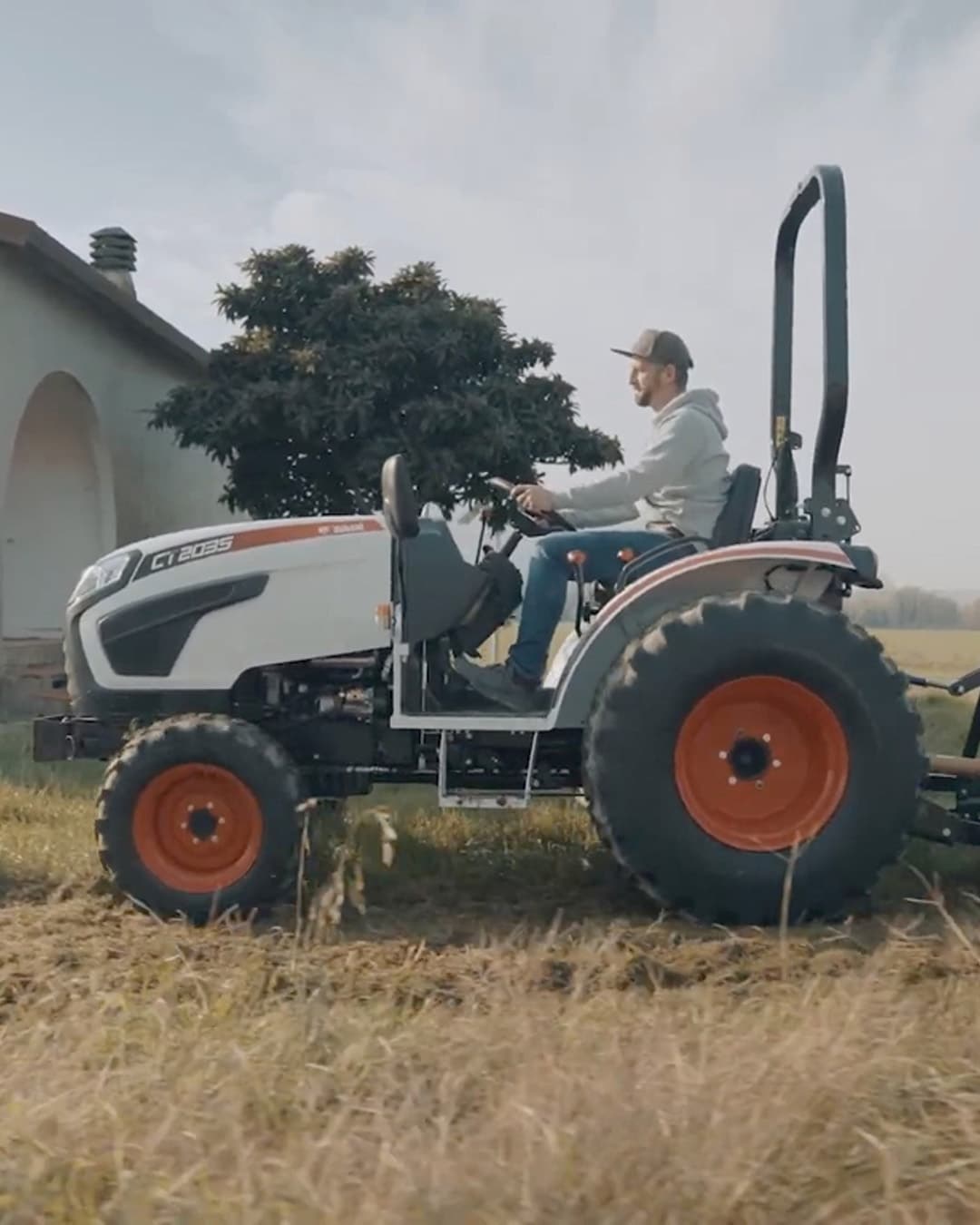

Bobcat CT2035 Compact Tractor
The Bobcat CT2035 compact tractor can tackle loader and implement work utilising its 35hp engine.
Make light work of heavy-duty tasks
Make light work of
heavy-duty tasks
The Bobcat CT2035 compact tractor is a powerful machine that can handle heavy-duty jobs but is small enough to manoeuvre into tight spaces.

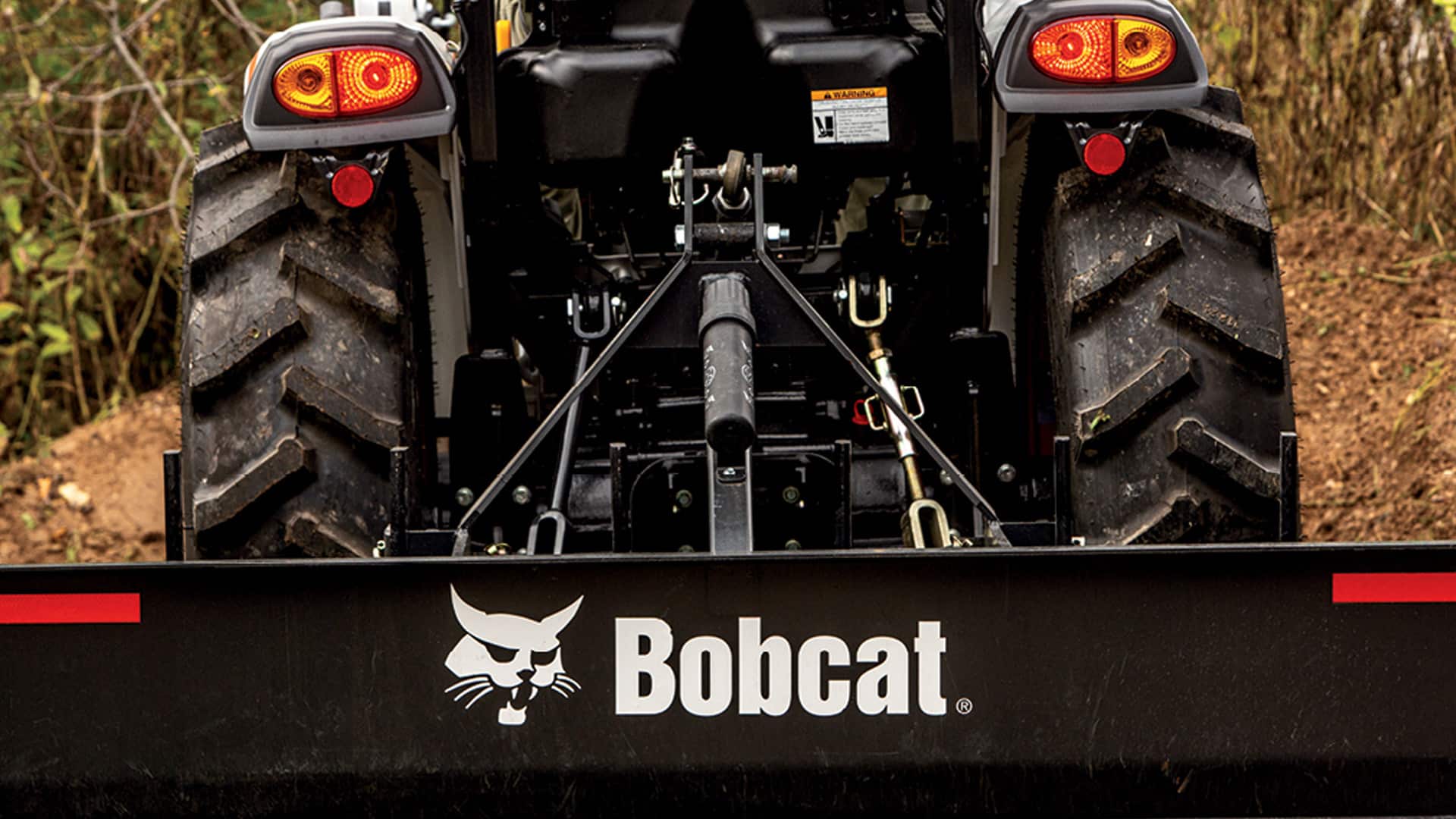

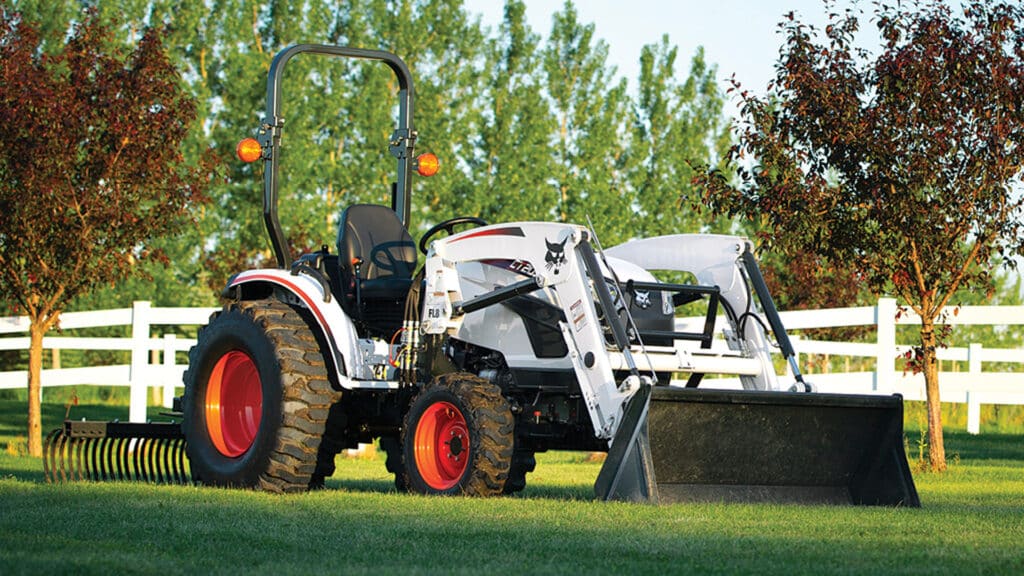

It features a Category 1 three-point hitch for using implements, and an integrated loader joystick lever for easy front-end loader work.
The standard rear PTO and optional mid-PTO make this tractor a versatile tool for any farm.
Performance and power
The Bobcat CT2035 compact tractor provides the performance and power you need to undertake farm tasks with a front-end loader and a range of implements.
Get the big jobs done using the standard four-wheel drive – mowing, transporting materials and excavating. A small turning circle allows you to get close to buildings and other objects.
The adaptability of a three-range hydrostatic gearbox or a manual-shift transmission allows you to operate the way you choose.
With the comfortable, moulded grip integrated joystick lever, you can make the font-end loader respond to your preference.
Bobcat CT2035 Compact Tractor Specifications
overview
Horsepower
26.02kW (35hp)
Lift Capacity at 24″ behind Lift Point
739.81kg
PTO HP
22.97kW (31hp)
Transmission Type
3 Range Hydrostatic
Width
1,595mm
Turning Radius
2,438mm
Wheelbase
1,670mm
engine
Emissions Tier (EPA)
Tier 4
Horsepower
26.02kW (35hp)
Displacement
1,826cc
Number of Cylinders
3
Gross HP
26.02kW (35hp)
Engine Model
3F-TM(H4)
performance
Operating Weight
1,363kg
Travel Speed
22.53km/h
Travel Speed – Reverse
20.1km/h
3-Point Hitch
Category 1
3-Point Lift Control Type
Hydraulic Position Control System
Lift Capacity at 24″ behind Lift Point
739.81kg
Rear PTO System
Live
Rear PTO – RPM
540rpm
PTO HP
22.97kW (31hp)
Mid PTO – RPM
1,988rpm
capacities
Fuel Tank
34l
hydraulic system
Implement Hydraulic Flow
26.12l/min
Total Hydraulic Flow
44.4l/min
Steering Hydraulic Flow
17.03l/min
dimensions
Length
3,053mm
Width
1,595mm
Height
2,474mm
Ground Clearance
305mm
Turning Radius
2,438mm
Wheelbase
1,669mm
Front Tyre Size
Front Industrial (AG, Turf) 25 x 8.5 – 14 6PR
Rear Tyre Size
Rear Industrial (AG, Turf) 15 x 19.5 – 12 8PR
drive systems
Brake Type
Wet Disc Type
Transmission Type
3 Range Hydrostatic
loader attatchment
Loader Lift Height
2,540mm
Lift Capacity @ 500mm Ahead of Bucket Pivot
630.04kg
Bucket Width
1,524mm
