Bobcat ZT3500 Zero Turn Mower
The Bobcat ZT3500 zero turn mower is designed for convenient maintenance and maximum comfort, allowing you to mow all day. Get ready to take on your toughest turf.
Home » Bobcat Zero Turn Mower | Delecca’s » Bobcat ZT3500 Zero Turn Mower

Get ready to take on your toughest turf
Get ready to take
on your toughest turf

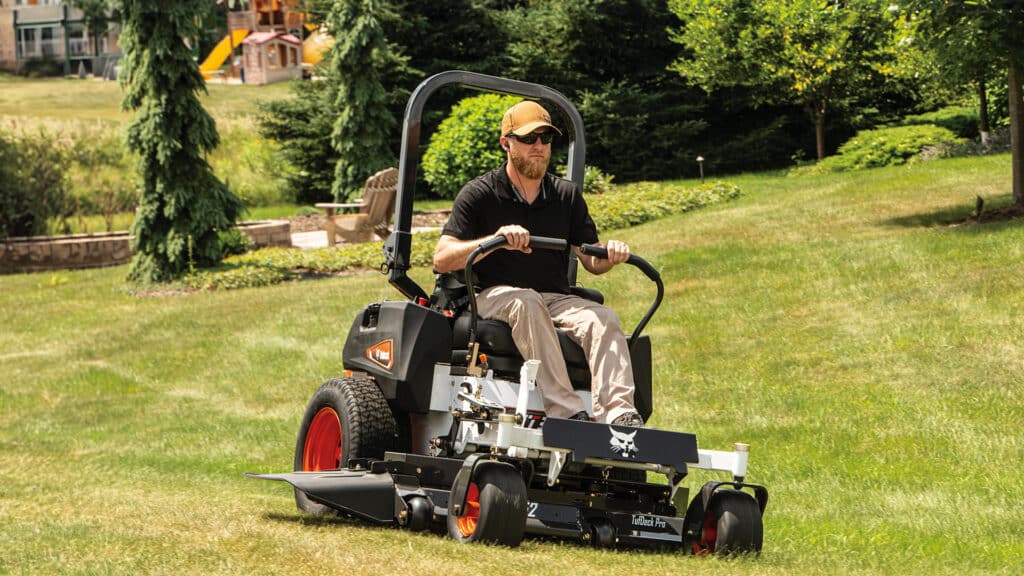

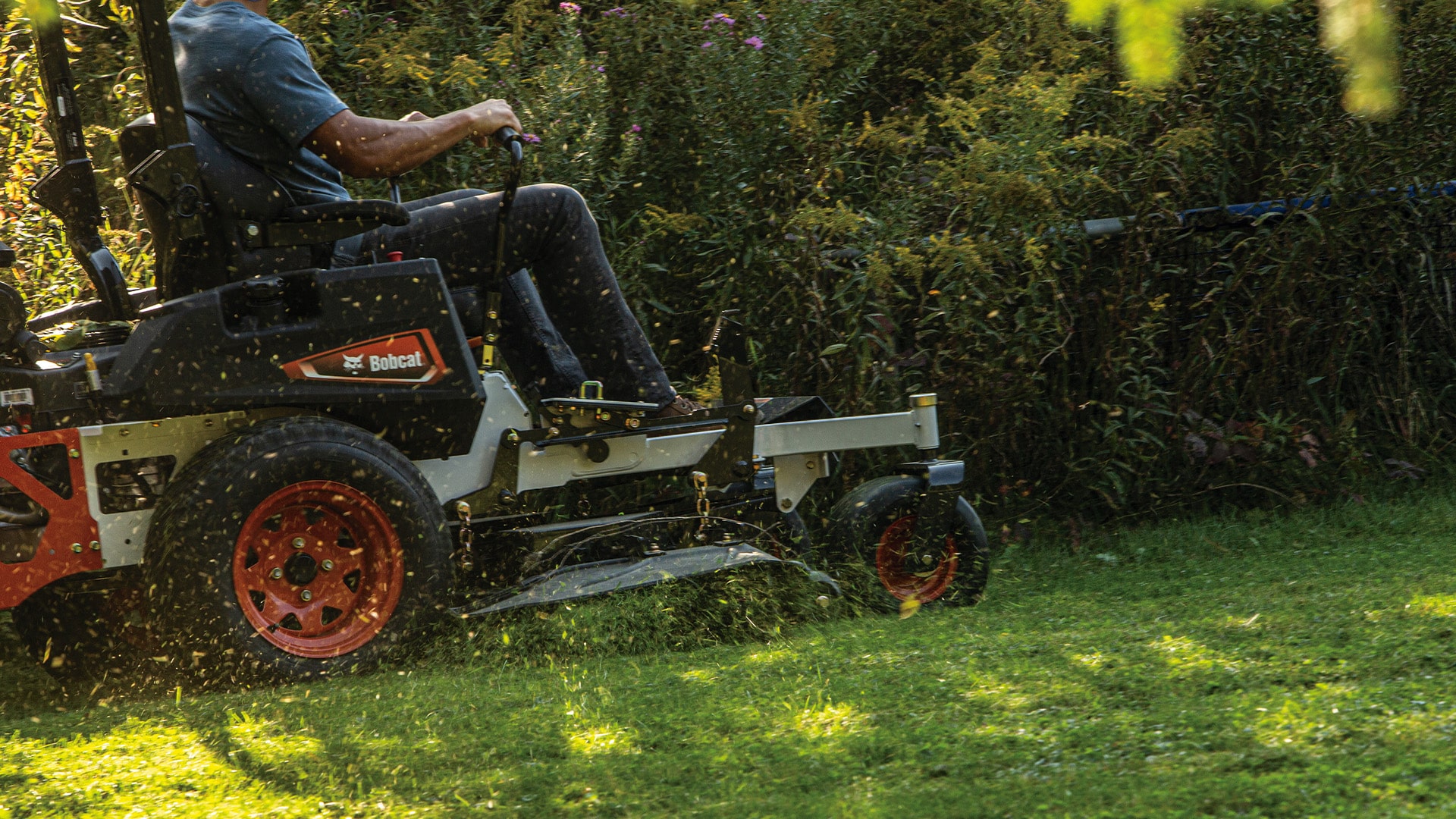

The Bobcat ZT3500 zero turn mower is designed for convenient maintenance and maximum comfort allowing you to mow all day.
The standard 7-gauge steel frame is durable and easy to keep clean, while the 23-inch drive tires offer great control and a smooth ride. The high-back, full-mechanical suspension seat is adjustable for ultimate comfort, and with a cutting width of up to 61 inches, the Bobcat ZT3500 is ideal for large areas.
smooth and steady mowing power
The Bobcat ZT3500 zero turn mower was designed to provide commercial-grade durability and performance at an affordable price. It’s ideal for anyone who wants to tackle the toughest chores while achieving a great cut.

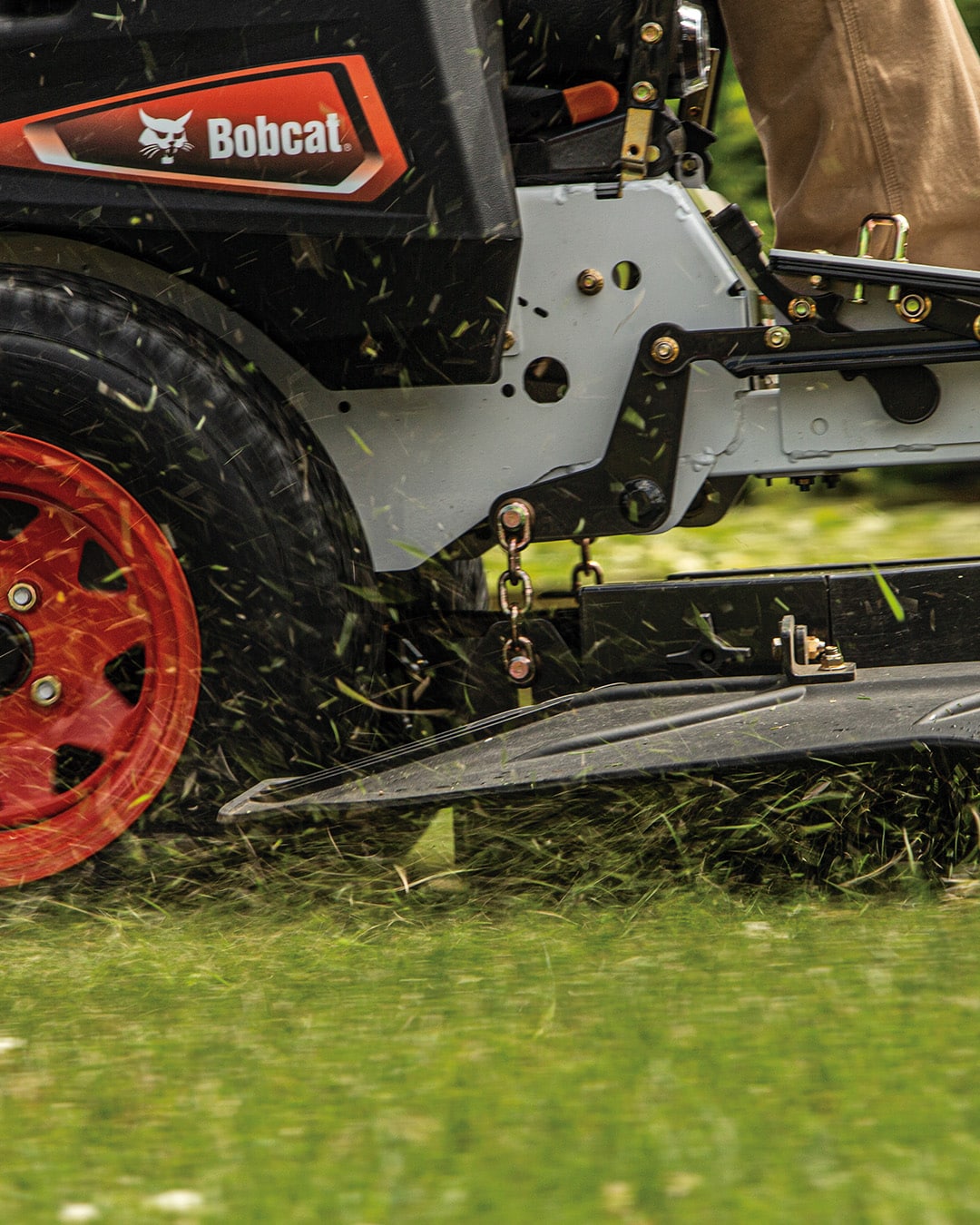

Need more power? You got it – the Bobcat ZT3500 is equipped with a Kawasaki® FX series engine. And with the deep profile TufDeckTM Pro cutting system with welded, cast-aluminium spindles and interchangeable, bolt-on baffles you’ll get a consistent, clean cut each and every time.
The improved Hydro-Gear® ZT-3400 hydrostatic transaxle provides smooth and consistent mowing power – even at high speeds. Able to provide you with greater torque, output, and speed whenever you need it.
The Bobcat ZT3500 provides excellent control and a smooth, pleasant ride across even the most difficult terrain. And with ground speeds of up to 16km/h, you can get the job done quickly.


Bobcat ZT3500 Zero Turn Mower Specifications
overview
ZT3548SF
ZT3552SG
ZT3561SH
Mower Deck
TufDeck™ Pro 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
TufDeck™ Pro 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
TufDeck™ Pro 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
Width
1,240mm / 48 inch
1,380mm / 52 inch
1,600mm / 61 inch
Cutting Height
38 – 121mm
38 – 121mm
38 – 121mm
Engine Model
Kaw FX651V
Kaw FX691V
Kaw FX730V
Displacement
726cc
726cc
726cc
Transmission Type
HG ZT-3400 Hydrostatic Transaxles
HG ZT-3400 Hydrostatic Transaxles
HG ZT-3400 Hydrostatic Transaxles
Pump Displacement
12cc
12cc
12cc
performance
ZT3548SF
ZT3552SG
ZT3561SH
Weight
351kg
358kg
377kg
transmission
ZT3548SF
ZT3552SG
ZT3561SH
Transmission Type
HG ZT-3400 Hydrostatic Transaxles
HG ZT-3400 Hydrostatic Transaxles
HG ZT-3400 Hydrostatic Transaxles
Pump Displacement
12cc
12cc
12cc
Oil Capacity
3.8l
3.8l
3.8l
Forward Speed
16.1km/h
16.1km/h
16.1km/h
Reverse Speed
5.6km/h
5.6km/h
5.6km/h
electrical
ZT3548SF
ZT3552SG
ZT3561SH
Charging System
15A
15A
15A
Clutch
169.47Nm
169.47Nm
169.47Nm
frame
ZT3548SF
ZT3552SG
ZT3561SH
Front / Rear
Welded 7-gauge Steel; 1.5 x 2.5 inch Steel Tubing
Welded 7-gauge Steel; 1.5 x 2.5 inch Steel Tubing
Welded 7-gauge Steel; 1.5 x 2.5 inch Steel Tubing
Length
1,930mm
1,930mm
2,006mm
wheels
ZT3548SF
ZT3552SG
ZT3561SH
Drive Wheel
23 x 10.5 – 12
23 x 10.5 – 12
23 x 10.5 – 12
Front Caster Wheel Size
13 x 6.5 – 6
13 x 6.5 – 6
13 x 6.5 – 6
Caster Arm Attachment
Welded to Frame
Welded to Frame
Welded to Frame
seat
ZT3548SF
ZT3552SG
ZT3561SH
Seat
High-Back, Spring Suspension Seat
High-Back, Spring Suspension Seat
High-Back, Spring Suspension Seat
Fore-Aft Adjust
Seat Slide Lever
Seat Slide Lever
Seat Slide Lever
deck
ZT3548SF
ZT3552SG
ZT3561SH
Mower Deck
TufDeck™ Pro 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
TufDeck™ Pro 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
TufDeck™ Pro 10-gauge Top with 7-gauge Spindle Supports; 7-gauge Side Skirts
Width
1,240mm / 48 inch
1,380mm / 52 inch
1,600mm / 61 inch
Cutting Height
38 – 121mm
38 – 121mm
38 – 121mm
Blade Tip Speed
5,293 m/min
5,530m/min
5,733m/min
Discharge Chute
Flexible Molded Polymer
Flexible Molded Polymer
Flexible Molded Polymer
engine
ZT3548SF
ZT3552SG
ZT3561SH
Engine Model
Kaw FX651V
Kaw FX691V
Kaw FX730V
Displacement
726cc
726cc
726cc
Fuel Capacity
29.53l
29.53l
29.53l
